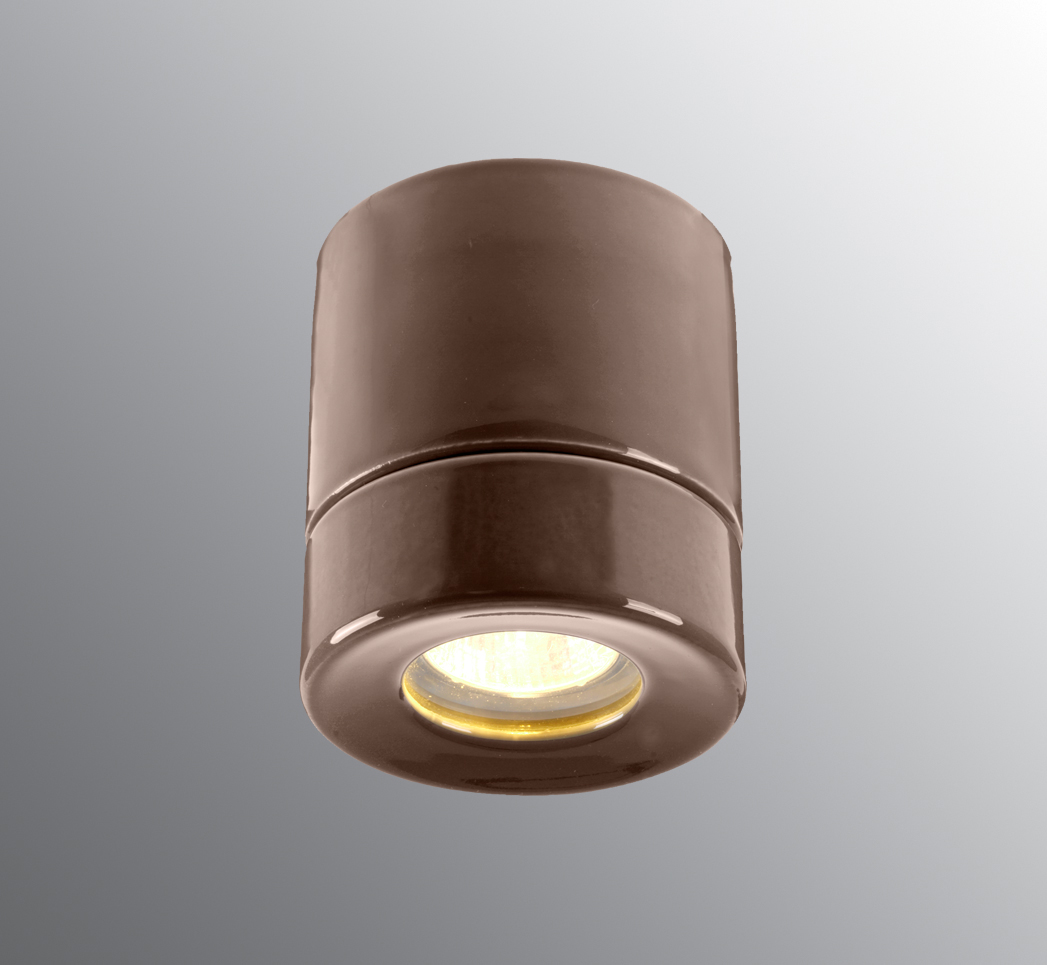

Light On Downlight Sauna

A ceramic light fitting in quality ceramic. Light On Downlight is designed by the famous designer Knud Holscher and intended for use in the ceiling of a sauna.

Article no. 6057-209-14
E-number 7530741
Norwegian El-number 3041060
Finnish S-number 4112842
EAN / GTIN 7312906057143
Type designation6057-B

Specification

MaterialPorcelain
Base colourBrown (NCS 7810-Y66R)
GlassProtection glass (Clear glass)
Glass thread (mm)74 mm
Glass gasketSilicone
Weight1,4 kg
Diameter (mm)99
Height (mm)114
Lamp holderGU10
Light sourceMax 35W (included)
EffectMax 35W
Rated voltage230V
IP classIP44
Insulation classII
Energy classG
D classNo
IK classIK03
TaMax +125
InstallationCeiling
CC measurement (mm)56, 70
Knock out opening2
Cable inletBottom inlet
Cable glandsBottom inlet
Cable area, maxMax 2 x 2,5 mm2
BridgingYes
Surface mounted cableYes
ConnectionMantle screw
FamilySauna
DesignKnud Holscher

Luminaire specific information

The luminaire is designed to be installed in ambient temperatures of up to 125 °C. Also approved for steam rooms. Sauna light source, halogen, GU10, 35W included.

Maintenance

Switch off the power to the fixture. Remove the top and clean it. Do not use cleaning agents containing solvents. Change the light source if necessary. Check the gasket and change it if necessary. Replace the top.

If the luminaire is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
