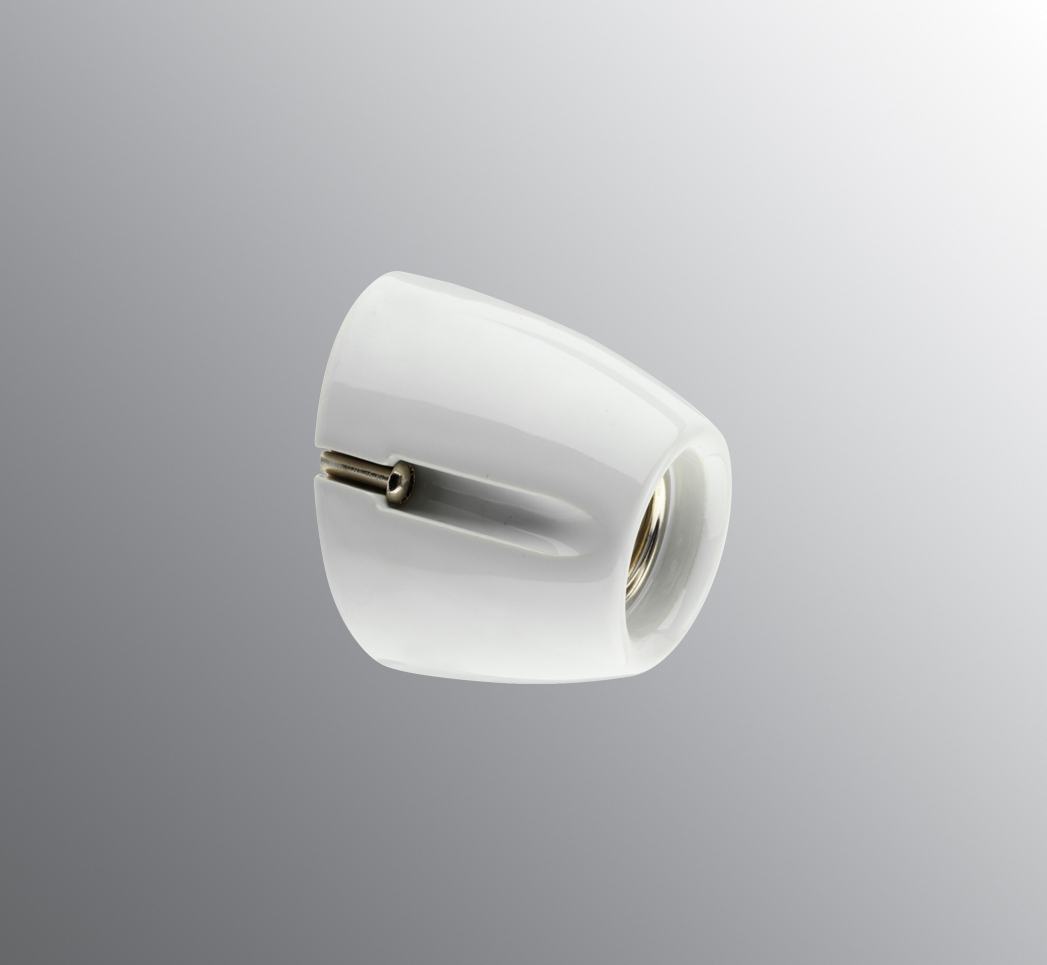

Basic
Simple is often difficult, but it is often the simple that gives the best effect and that wins the heart. Despite its simplicity Ifö Basic is used in most the exclusive environments.
- Article no. 52704-000-10
- E-number 7500003
- Norwegian El-number 3002632
- Finnish S-number 4212027
- EAN / GTIN 7312905270406
- Type designation52704
Specification
- MaterialPorcelain
- Base colourWhite (NCS S 1000-N)
- Weight0,27 kg
- Diameter (mm)70
- Length/Depth (mm)62
- Height (mm)76
- Lamp holderE27
- Light sourceE27, max 100W (not included)
- EffectMax 100W
- Rated voltage230V
- IP classIP20
- Insulation classII
- D classNo
- IK classIK03
- Ta-30 - +25
- InstallationWall
- CC measurement (mm)58
- Knock out opening1
- Cable inletBottom inlet
- Cable glandsBottom inlet
- Cable area, maxMax 2 x 2,5 mm2
- BridgingYes
- Surface mounted cableYes
- ConnectionScrew connector
- FamilyBasic
- DesignDuoform
Luminaire specific information
Angeled 15 degrees.
Maintenance
Switch off the power to the light fitting. Dust or dry with a slightly damp cloth. Change the light source if necessary.
If the luminaire is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
