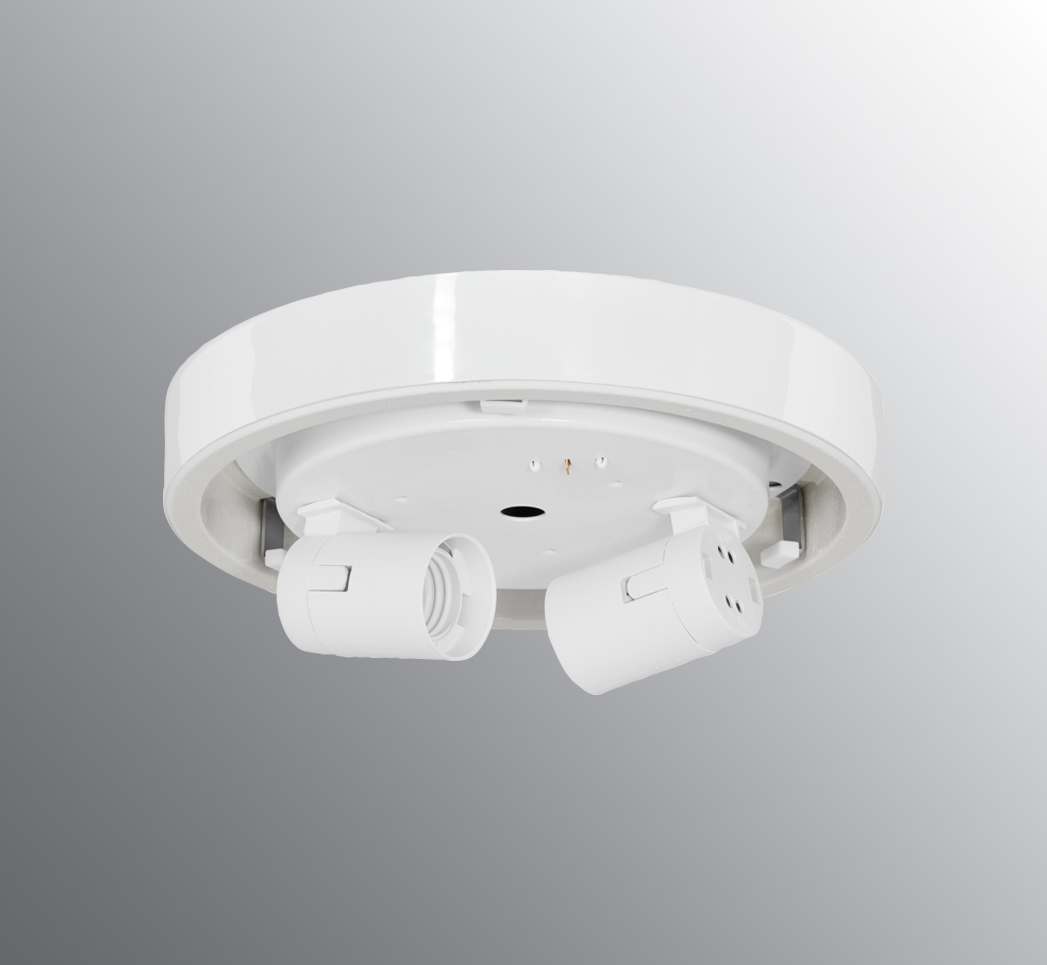

Base bayonet 184 mm. IP44. E27.
Base bayonet 184 mm white IP44 straight E27 2x25W.
- Article no. 55831-000-10
- E-number 7509678
- EAN / GTIN 7312905583100
Specification
- Base colourWhite (NCS S 1000-N)
- Glass thread (mm)184 mm
- Glass gasketSilicone
- Diameter (mm)220
- Height (mm)40
- Lamp holderE27
- Light sourceE27, max 2x25W (not incl.)
- Lighting controlE27, max 2x25W (not incl.)
- Rated voltage230V
- IP classIP44
- Insulation classI
- IK classIK02
- Ta-30 - +25
- InstallationCeiling/wall
- CC measurement (mm)70, 101
- Knock out opening3
- Cable inletBottom inlet
- Cable glandsBottom inlet
- BridgingYes
- Surface mounted cableYes
- FamilyBases
- DesignKauppi & Kauppi
Maintenance
Disconnect the luminiarie. Remove the shade and clean it. Do not use cleaning agents containing solvents. Change the light source if necessary. Check the gasket and change it if necessary. Replace the shade.
If the base is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
