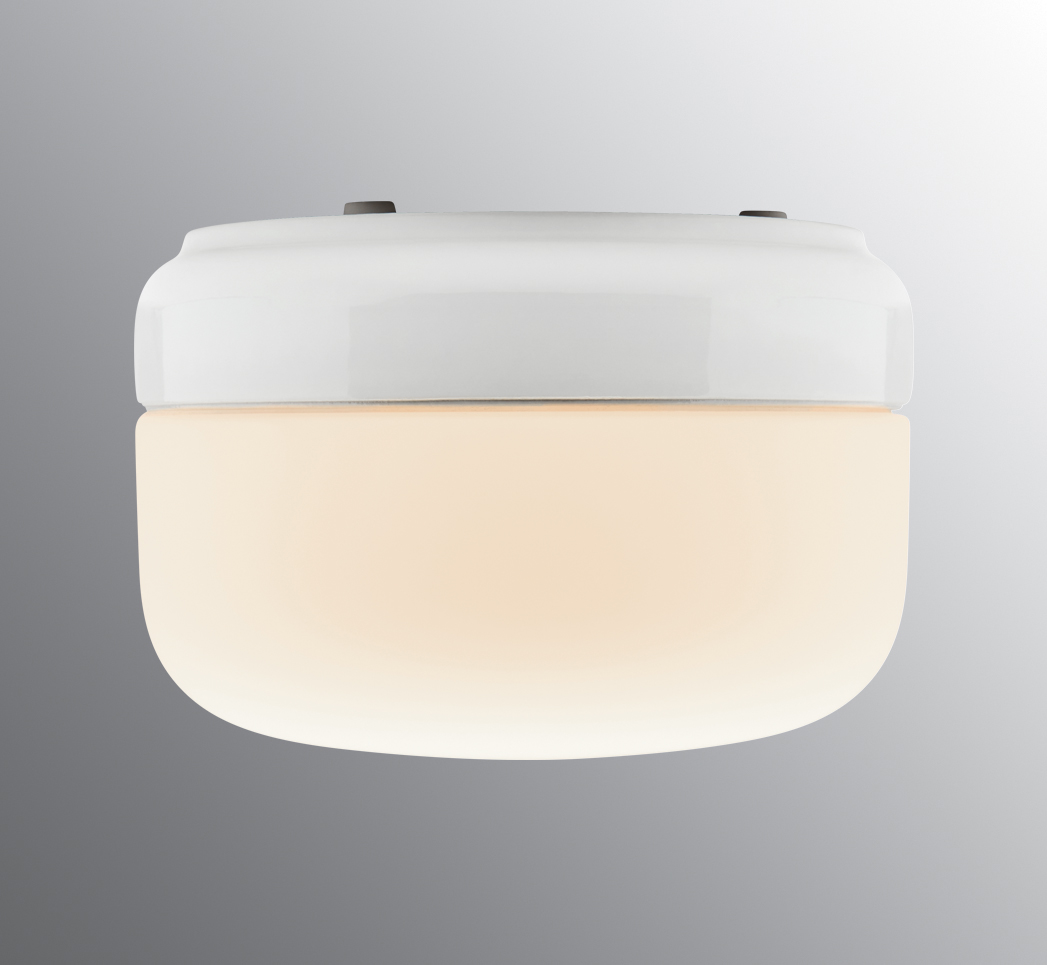

Ohm 220/155 LED 3000K

A family of porcelain luminaires for walls, ceilings and tables. Designed by Kauppi & Kauppi, the soft curves and restrained silhouette references to both Scandinavian design and ancient Japanese tableware.

Article no. 8391-830-10
E-number 7512267
EAN / GTIN 7312908391801
Type designation51833/LED

Specification

MaterialPorcelain
Base colourWhite (NCS S 1000-N)
GlassMatt opal glass
Glass gasketSilicone
Weight2,74 kg

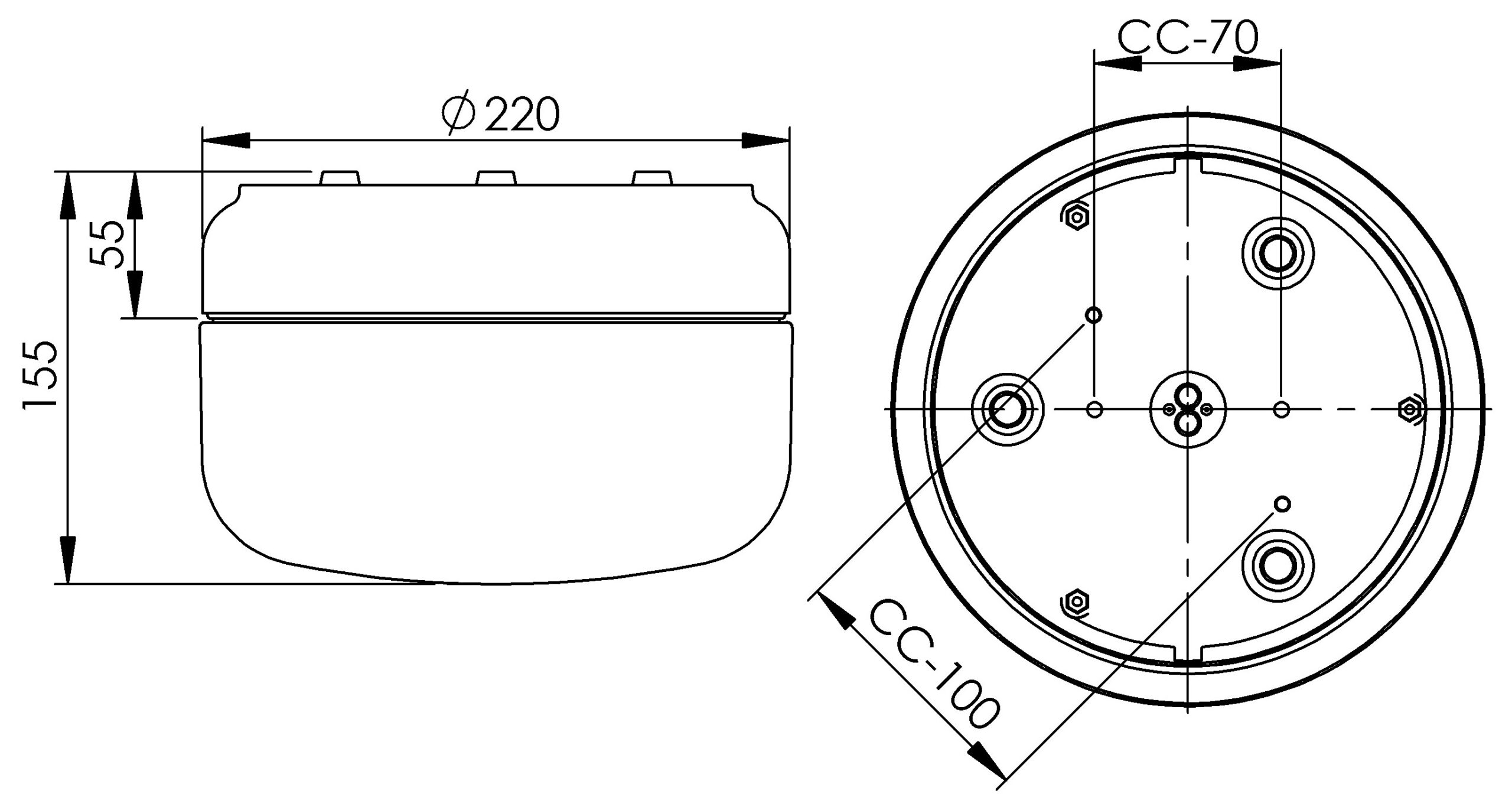

Diameter (mm)220
Height (mm)155
Lamp holderLED
Light sourceLED Module, 17W
Effect17
Lumen, light source2500
Colour temperature3000K
MacAdam3 SDCM
Life spanLED module L80/B10: 100 000h (Power Supply 50 000h)
RaMin 90
Lighting controlRequire CASAMBI ADD-ON.
Rated voltage230V
DimmableNo. Require CASAMBI ADD-ON to be dimable.
IP classIP44
Insulation classI
Energy classC
D classNo
IK classIK02
Ta-30 - +25
InstallationCeiling/wall
CC measurement (mm)70, 101
Knock out opening2
Cable inletBottom inlet
Cable area, maxMax 3 x 2,5 mm2
BridgingYes
Surface mounted cableYes
ConnectionTerminal block
FamilyOhm
DesignKauppi & Kauppi

Maintenance

Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace light source if necessary. Check the gasket and replace it if necessary. Screw the shade back on.

If the luminaire is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
