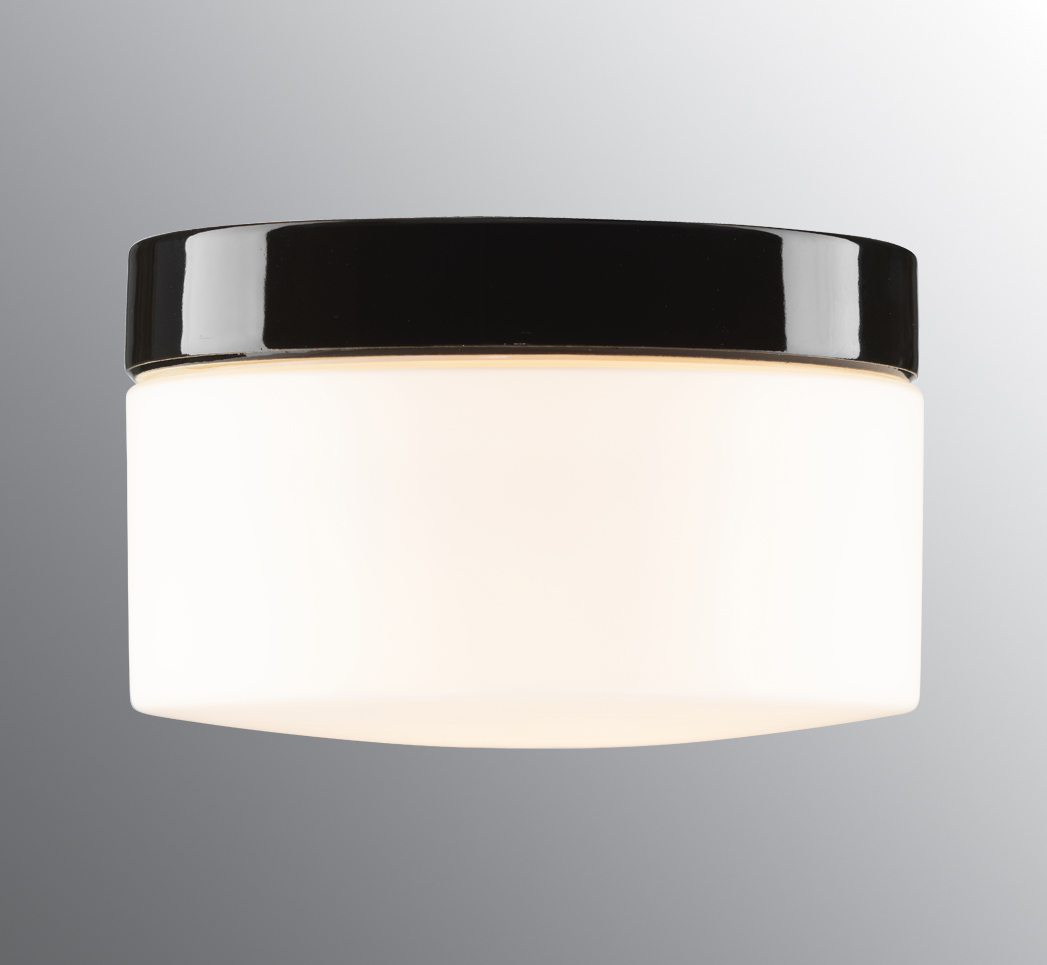

Opus 220/140 LED DALI 3000K

Opus is an elegant cylindrical formed light fitting. Its timeless design is suitable for wall or ceiling installation, both indoors and outdoors.

Article no. 8291-8301-16
E-number 7512298
EAN / GTIN 7312908291965
Type designation51831/DALI

Specification

MaterialPorcelain
Base colourBlack (NCS S 9000-N)
GlassMatt opal glass
Glass thread (mm)184 mm
Glass gasketSilicone
Weight2,61 kg
Diameter (mm)220
Height (mm)140
Lamp holderLED
Light sourceLED Module, 17W
Effect17W
Lumen, light source2500lm
Colour temperature3000K
MacAdam3 SDCM
Life spanLED module L80/B10: 100 000h (Power Supply 50 000h)
RaMin 90
Lighting controlDALI-1/DALI-2/Switch-Dim
Rated voltage230V
DimmableYes
IP classIP44
Insulation classI
Energy classC
D classNo
IK classIK02
Ta-30 - +25
InstallationCeiling/wall
CC measurement (mm)70, 101
Knock out opening3
Cable inletBottom inlet
Cable area, maxMax 5 x 2,5 mm2
BridgingYes
Surface mounted cableYes
ConnectionTerminal block
FamilyOpus
DesignDuoform

Maintenance

Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace LED module if necessary. Check the gasket and replace it if necessary. Screw the shade back on.

If the luminaire is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
