Shade Opus 220/140 matt opal
Gasket silicone for bayonett 184mm
Mounting plate E27 2 x 25W for base with diameter 220. Bayonet 184mmOpus 220/140
Opus is an elegant cylindrical formed light fitting. Its timeless design is suitable for wall or ceiling installation, both indoors and outdoors.
- Article no. 8291-530-12
- E-number 7512288
- EAN / GTIN 7312908291521
- Type designation51831/E27
Specification
- MaterialPorcelain
- Base colourGrey (NCS S 6005-G50Y)
- GlassMatt opal glass
- Glass thread (mm)184 mm
- Glass gasketSilicone
- Weight2,46 kg
- Diameter (mm)220
- Height (mm)140
- Lamp holderE27
- Light sourceE27, max 2x25W (not incl.)
- Effect2 x Max 25W
- Rated voltage230V
- IP classIP44
- Insulation classI
- D classNo
- IK classIK02
- Ta-30 - +25
- InstallationCeiling/wall

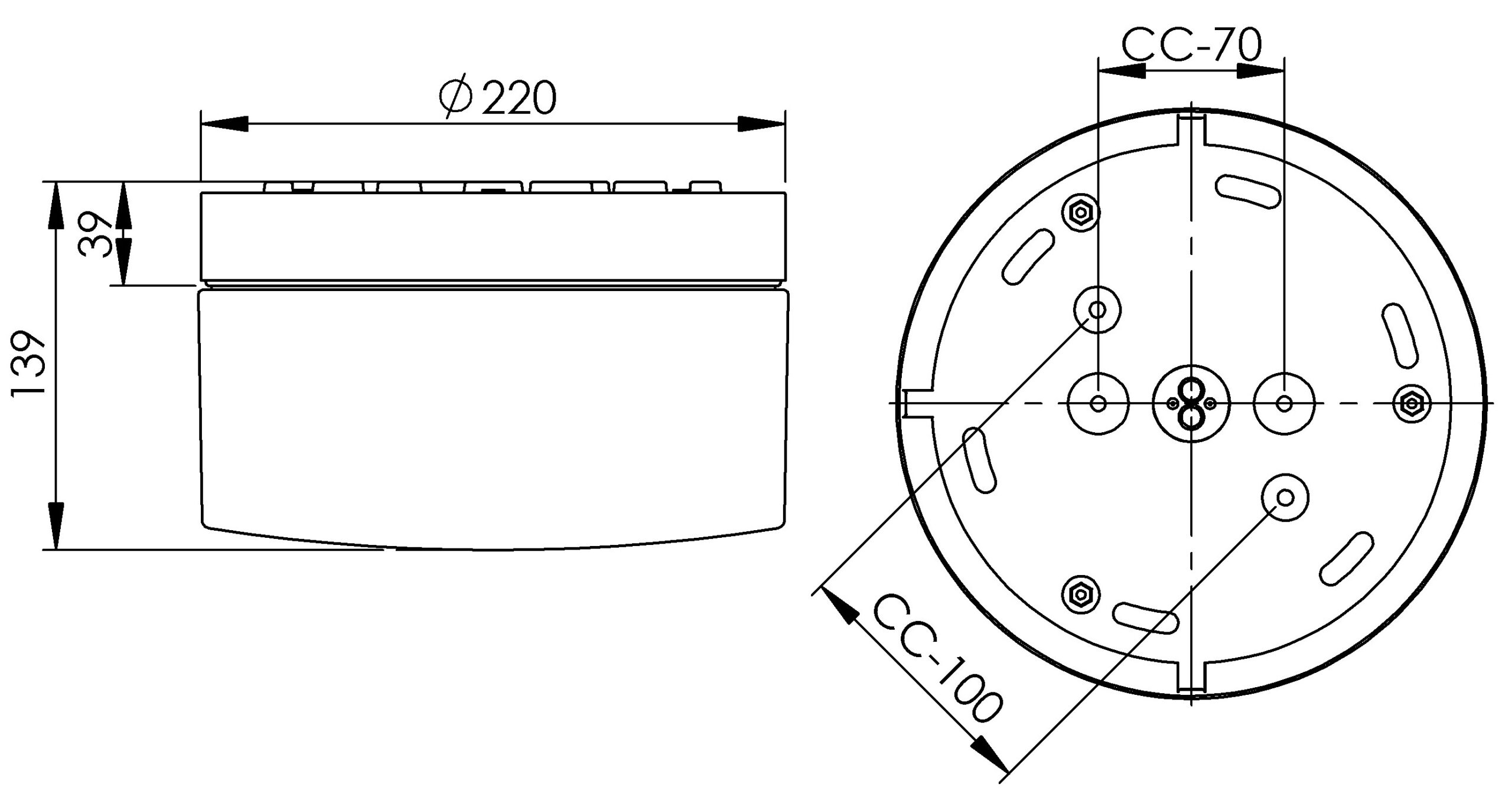

- CC measurement (mm)70, 101
- Knock out opening3
- Cable inletBottom inlet
- Cable glandsBottom inlet
- Cable area, maxMax 3 x 2,5 mm2
- BridgingYes
- Surface mounted cableYes
- ConnectionTerminal block
- FamilyOpus
- DesignDuoform
Maintenance
Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace light source if necessary. Check the gasket and replace it if necessary. Screw the shade back on.
If the luminaire is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
