Opus 140/100 LED DALI 3000K

Opus 140/100 LED is an elegant cylindrical formed light fitting. Its timeless design is suitable for wall or ceiling installation, both indoors and outdoors. Equipped with a LED module, prepared for DALI.

Article no. 8251-8001-12
E-number 7508464
EAN / GTIN 7312908251945
Type designation51765/DALI

Specification

MaterialPorcelain
Base colourGrey (NCS S 6005-G50Y)
GlassMatt opal glass
Glass thread (mm)123,5 mm
Glass gasketSilicone
Weight1,34 kg

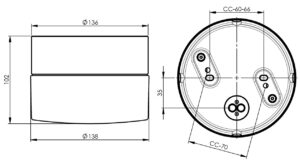

Diameter (mm)138
Height (mm)100
Lamp holderLED
Light sourceLED module 10W
Effect10W
Lumen, light source1200lm
Colour temperature3000K
MacAdam3 SDCM
Life spanL80/B10: 50 000 h
RaMin 90
Lighting controlDALI Type 2
Rated voltage230V
DimmableDALI PHM126 min 3%
IP classIP44
Insulation classI
Energy classE
D classNo
IK classIK02
Ta-30 - +25
InstallationCeiling/wall
CC measurement (mm)60-66, 70
Knock out opening4
Cable inletBottom inlet
Cable glandsBottom inlet
Cable area, maxMax 5 x 2,5 mm2
BridgingYes
Surface mounted cableYes
ConnectionTerminal block
FamilyOpus
DesignDuoform

Maintenance

Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace light source if necessary. Check the gasket and replace it if necessary. Screw the shade back on.

If the luminaire is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
