Opus 100/175 Sauna

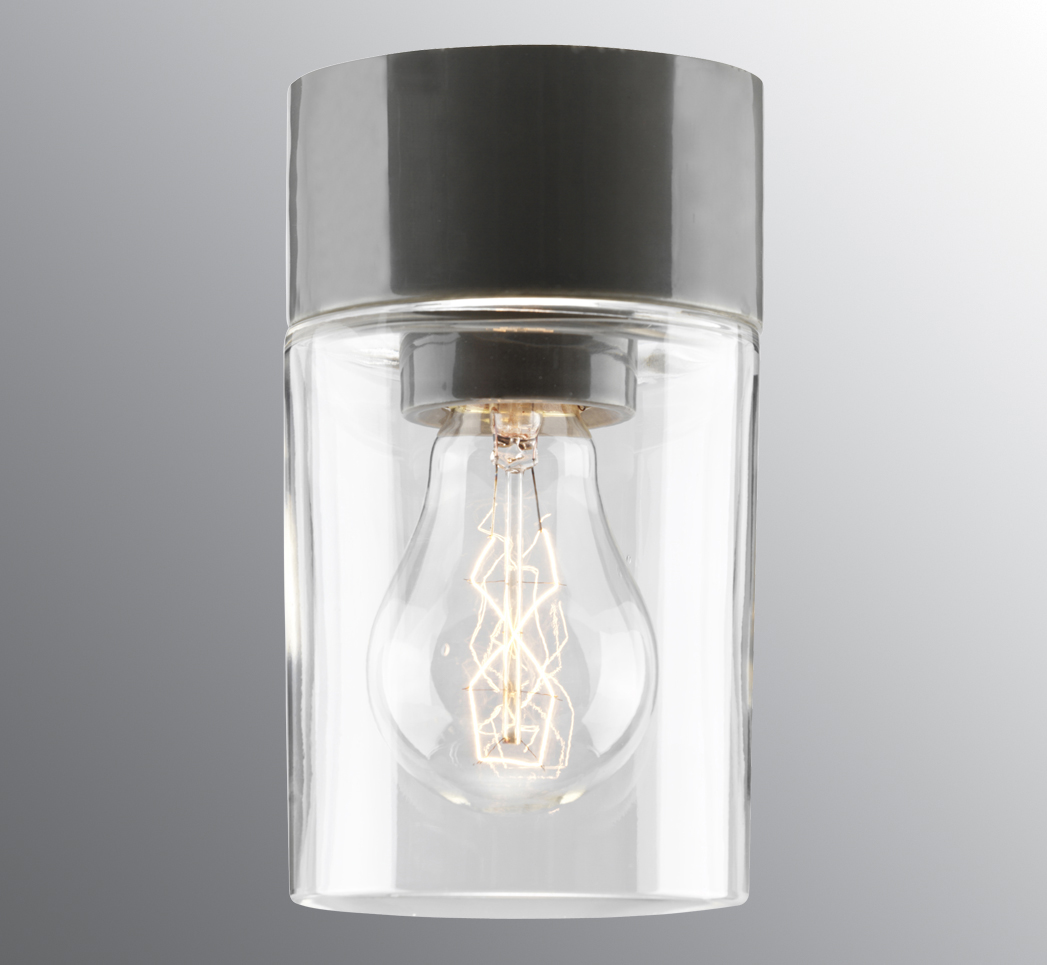

Opus 100/175 is an elegant cylindrical light fitting in a timeless design with a ceramic base. Suitable for both walls and ceilings in saunas.

Article no. 8240-519-12
E-number 7530442
Norwegian El-number 3041075
Finnish S-number 4212252
EAN / GTIN 7312908240222
Type designation7240

Specification

MaterialPorcelain
Base colourGrey (NCS S 6005-G50Y)
GlassClear glass
Glass thread (mm)84,5 mm
Glass gasketSilicone
Weight0,77 kg
Diameter (mm)97
Height (mm)171
Lamp holderE27
Light sourceMax 40W ceiling/60W wall (included)
EffectMax 40W ceiling/60W wall
Rated voltage230V
IP classIP44
Insulation classII
Energy classG
D classNo
IK classIK02
TaMax +125
InstallationCeiling/wall
CC measurement (mm)60-66, 70
Knock out opening0
Cable inletBottom inlet
Cable glandsBottom inlet
Cable area, maxMax 2 x 2,5 mm2
BridgingYes
Surface mounted cableNo
ConnectionMantle screw
FamilySauna
DesignDuoform

Luminaire specific information

Our shades are all unique, minor variations may occur. The luminaire is designed to be installed in ambient temperatures of up to 125 °C. Also approved for steam rooms. Sauna light source, E27, 30W included.

Maintenance

Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace light source if necessary. Check the gasket and replace it if necessary. Screw the shade back on.

If the luminaire is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
