Opus 100/125 LED 2700K

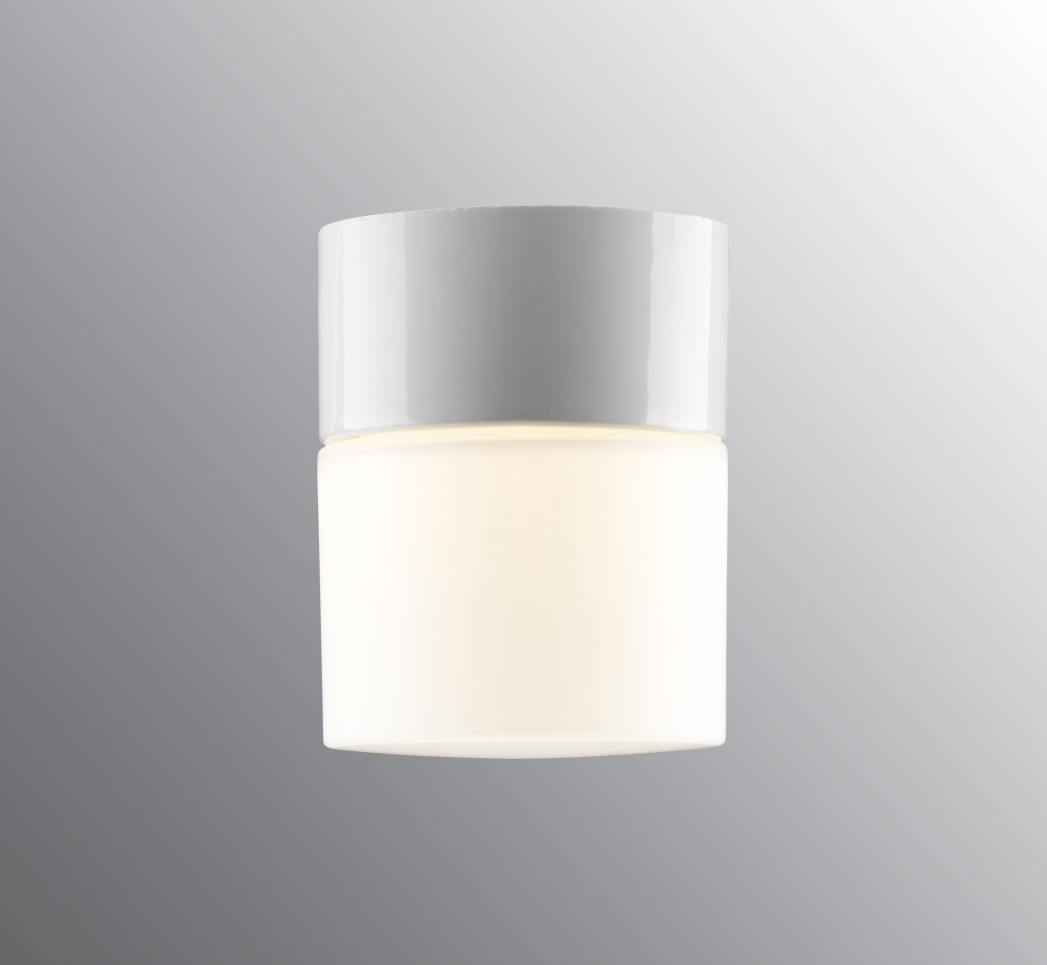

Opus 100/125 LED is an elegant, cylindrical shaped light fitting. Its timeless design it suitable for wall or ceiling installation, both indoors and outdoors.

Article no. 8221-801-10
E-number 7504360
EAN / GTIN 7312908221818
Type designation8241/LED

Specification

MaterialPorcelain
Base colourWhite (NCS S 1000-N)
GlassMatt opal glass
Glass thread (mm)84,5 mm
Glass gasketSilicone
Weight0,87 kg
Diameter (mm)97
Height (mm)125
Lamp holderLED
Light sourceLED module, 8W **
Effect8W
Lumen, light source800lm
Lumen, luminarire548
Colour temperature2700K
MacAdam3 SDCM
Life spanL80/B10: 50 000 h
RaMin 90
Rated voltage230V
DimmableBack edge only - We recommend dimmers from ION, Schneider, Vadsbo and Niko
IP classIP44
Insulation classI
Energy classF
D classNo
IK classIK02
Ta-30 - +25
InstallationCeiling/wall
CC measurement (mm)60-66, 70
Knock out opening0
Cable inletBottom inlet
Cable glandsBottom inlet
Cable area, maxMax 3 x 2,5 mm2
BridgingYes
Surface mounted cableNo
ConnectionTerminal block
FamilyOpus
DesignDuoform

Maintenance

Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace LED module if necessary. Check the gasket and replace it if necessary. Screw the shade back on.

** Only use dimmers with manual trailing edge control. Do not use leading edge dimming or automatic setting as this can shorten the lifespan of the module.

If the luminaire is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
