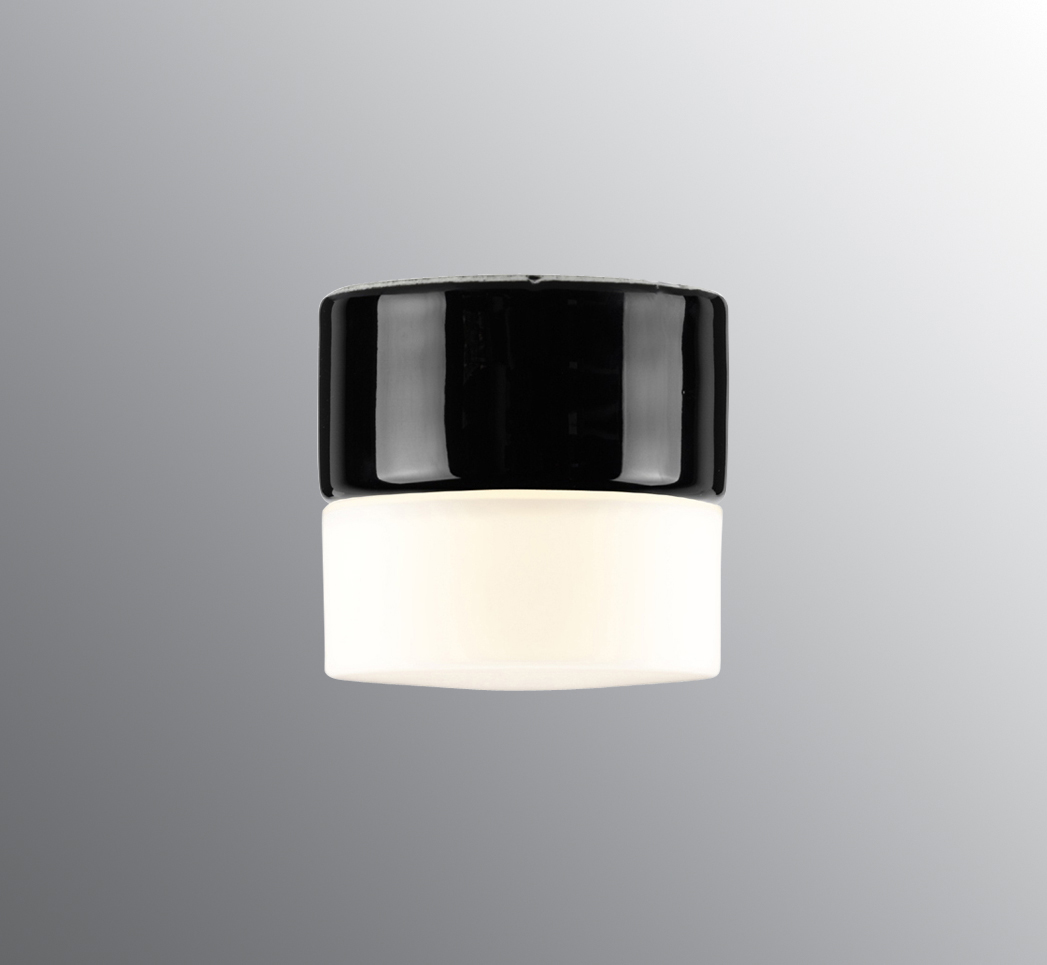

Opus 100/100

Opus 100/100 is an elegant, cylindrical shaped light fitting. Its timeless design it suitable for wall or ceiling installation, both indoors and outdoors.

Article no. 8201-200-16
E-number 7530303
Norwegian El-number 3041092
Finnish S-number 4212302
EAN / GTIN 7312908201162
Type designation7201

Specification

MaterialPorcelain
Base colourBlack (NCS S 9000-N)
GlassMatt opal glass
Glass thread (mm)84,5 mm
Glass gasketSilicone
Weight0,77 kg
Diameter (mm)97
Height (mm)95
Lamp holderG9
Light sourceMax 25W (not included)
EffectMax 25W
Rated voltage230V
IP classIP44
Insulation classII
D classNo
IK classIK02
Ta-30 - +25
InstallationCeiling/wall
CC measurement (mm)60-66, 70
Knock out opening0
Cable inletBottom inlet
Cable glandsBottom inlet
Cable area, maxMax 2 x 2,5 mm2
BridgingYes
Surface mounted cableNo
ConnectionMantle screw
FamilyOpus
DesignDuoform

Maintenance

Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace light source if necessary. Check the gasket and replace it if necessary. Screw the shade back on.

If the luminaire is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
