Opus 100/100 Sauna

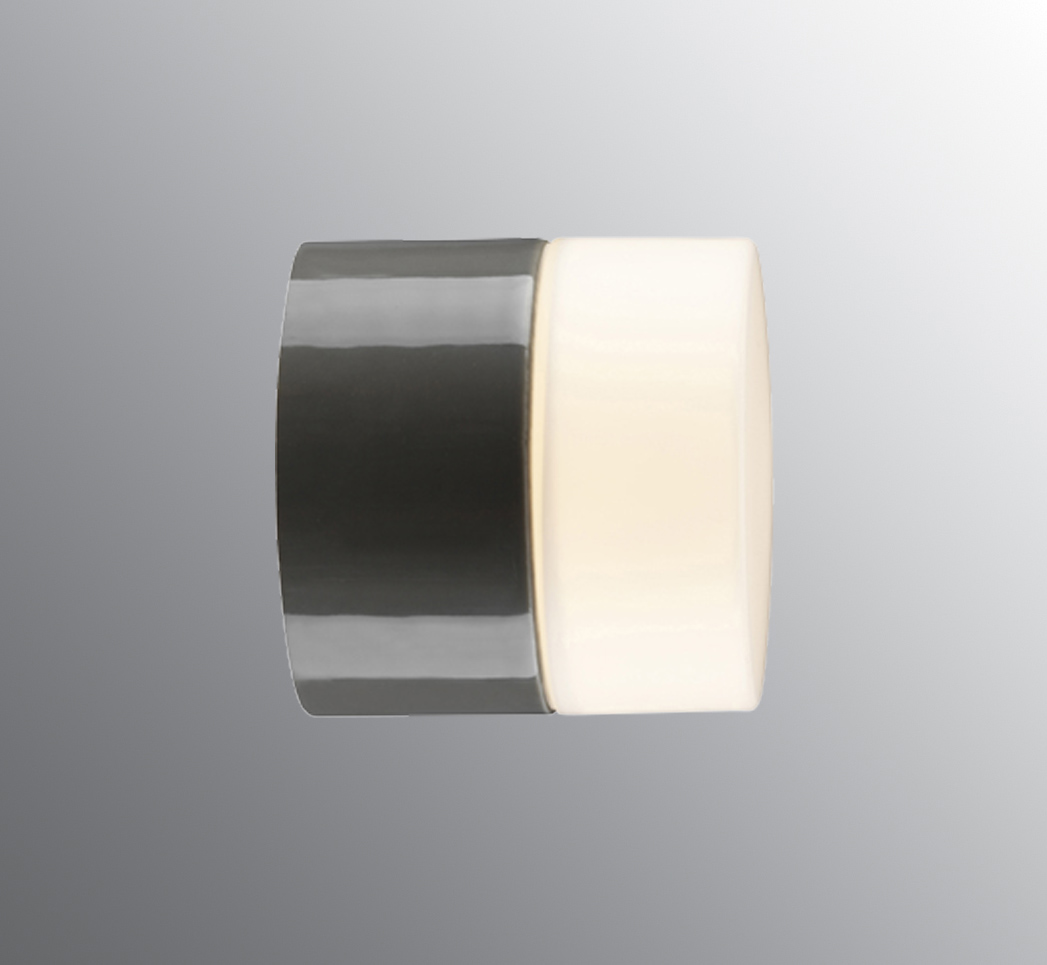

Opus 100/100 is an elegant cylindrical light fitting in a timeless design with a ceramic base.

Article no. 8200-209-12
E-number 7530390
Norwegian El-number 3041063
Finnish S-number 4212240
EAN / GTIN 7312908200127
Type designation7200

Specification

MaterialPorcelain
Base colourGrey (NCS S 6005-G50Y)
GlassMatt opal glass
Glass thread (mm)84,5 mm
Glass gasketSilicone
Weight0,77 kg
Diameter (mm)97
Length/Depth (mm)95
Height (mm)95
Lamp holderG9
Light sourceMax 25W wall (included)
EffectMax 25W wall
Rated voltage230V
IP classIP44
Insulation classII
Energy classG
D classNo
IK classIK02
TaMax +125
InstallationWall

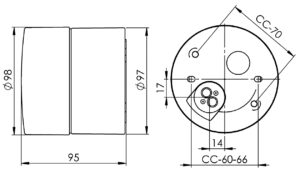

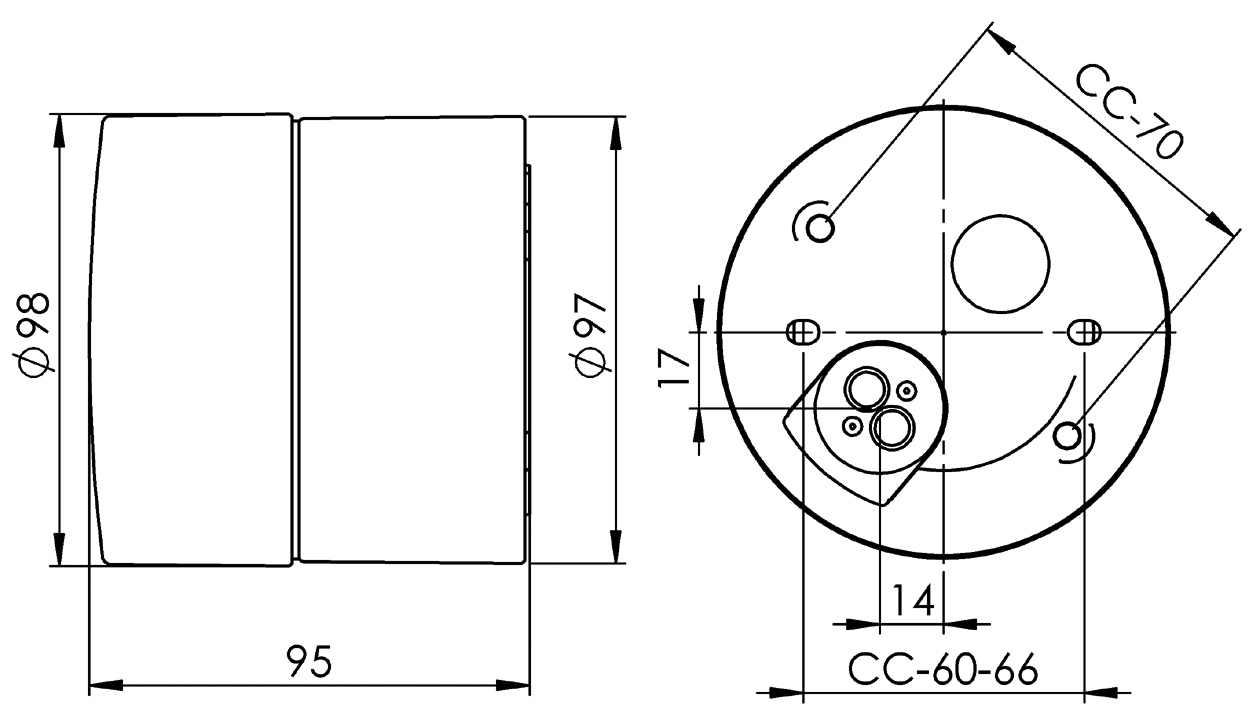

CC measurement (mm)60-66, 70
Knock out opening0
Cable inletBottom inlet
Cable glandsBottom inlet
Cable area, maxMax 2 x 2,5 mm2
BridgingYes
Surface mounted cableNo
ConnectionMantle screw
FamilySauna
DesignDuoform

Luminaire specific information

The luminaire is designed to be installed in ambient temperatures of up to 125 °C. Also approved for steam rooms. Sauna light source, halogen, G9, 25W included.

Maintenance

Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace light source if necessary. Check the gasket and replace it if necessary. Screw the shade back on.

If the luminaire is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
