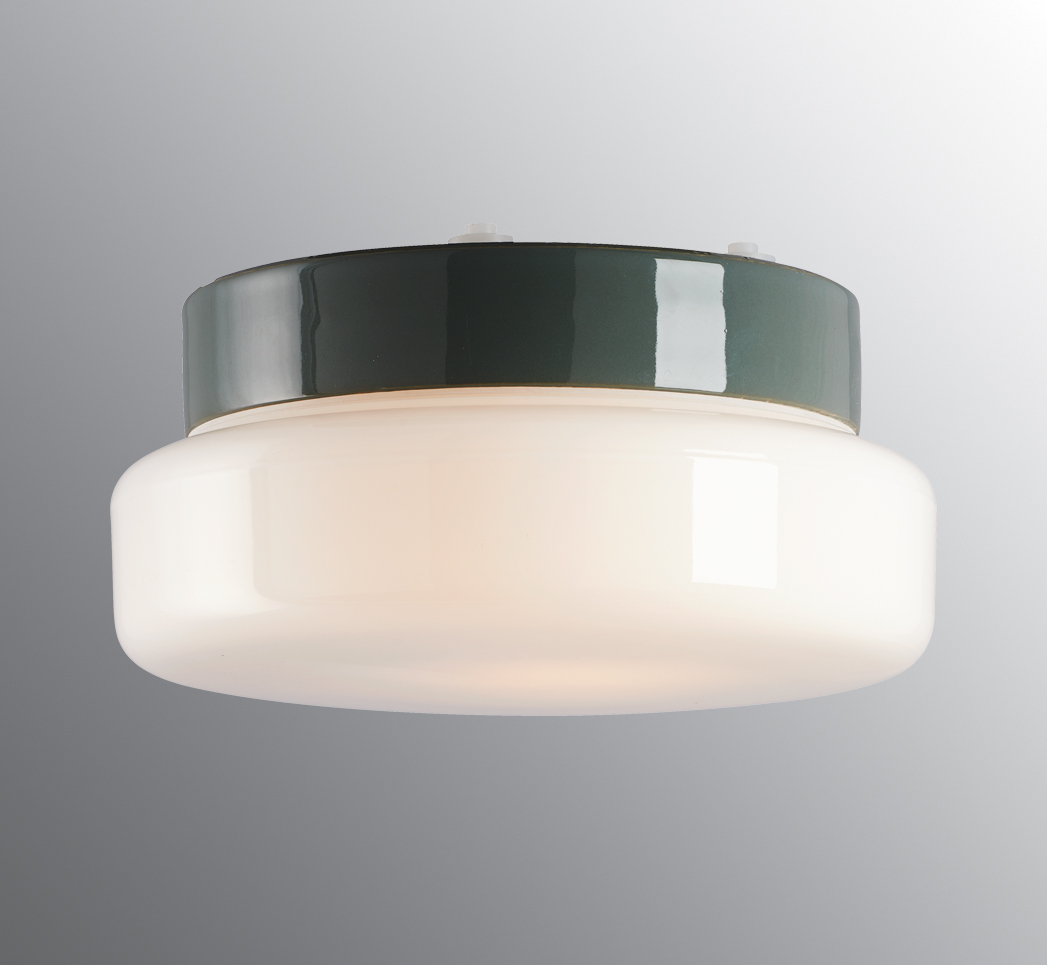

Classic Sauna

Classic is an old favourite in the assortment, with a ceramic base and shiny matt shade. Suitable for both ceiling and wall in saunas.

Article no. 8048-509-12
E-number 7530387
Norwegian El-number 3041055
Finnish S-number 4112837
EAN / GTIN 7312908048125
Type designation7047

Specification

MaterialPorcelain
Base colourGrey (NCS S 6005-G50Y)
GlassShiny opal glass
Glass thread (mm)185,5 mm
Glass gasketSilicone
Weight2,3 kg
Diameter (mm)240
Height (mm)125
Lamp holderE27
Light sourceMax 40W ceiling/60W wall (included)
EffectMax 40W ceiling/60W wall
Rated voltage230V
IP classIP44
Insulation classII
Energy classG
D classNo
IK classIK02
TaMax +125
InstallationCeiling/wall
CC measurement (mm)133, 70
Knock out opening3
Cable inletBottom inlet
Cable glandsBottom inlet
Cable area, maxMax 2 x 2,5 mm2
BridgingYes
Surface mounted cableYes
ConnectionScrew connector
FamilySauna
DesignDuoform

Luminaire specific information

The luminaire is designed to be installed in ambient temperatures of up to 125 °C. Also approved for steam rooms. Sauna light source, E27, 40W included.

Maintenance

Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace light source if necessary. Check the gasket and replace it if necessary. Screw the shade back on.

If the luminaire is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
