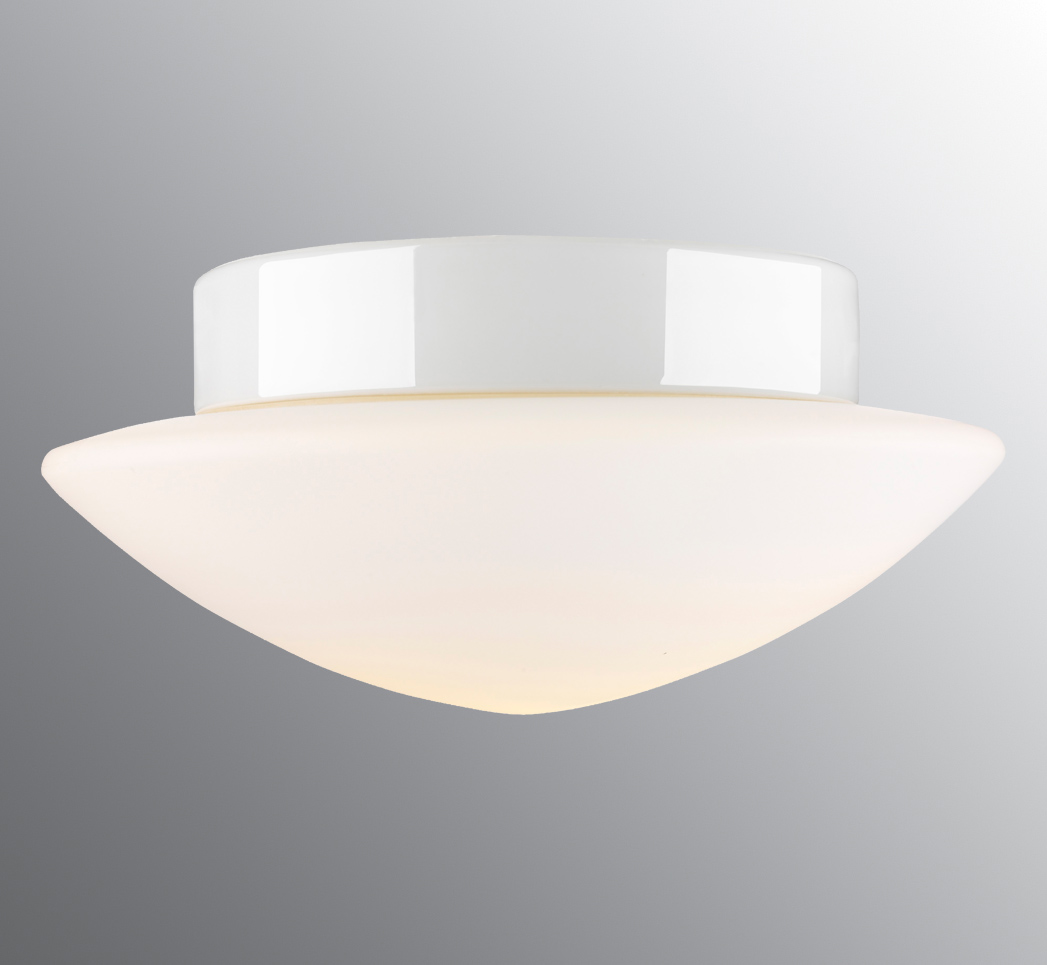

Contrast Solhem LED 3000K

Contrast is a series with different shades in matt opal glass. Each type of glass has received its own local name to honour the area. Ifö Contrast is suitable for both private and public settings.

Article no. 8043-800-10
E-number 7501379
EAN / GTIN 7312908043809
Type designation8262/LED

Specification

MaterialPorcelain
Base colourWhite (NCS S 1000-N)
GlassMatt opal glass
Glass thread (mm)185,5 mm
Glass gasketSilicone
Weight2,44 kg

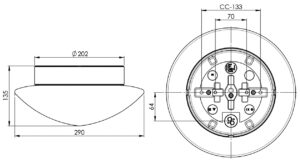

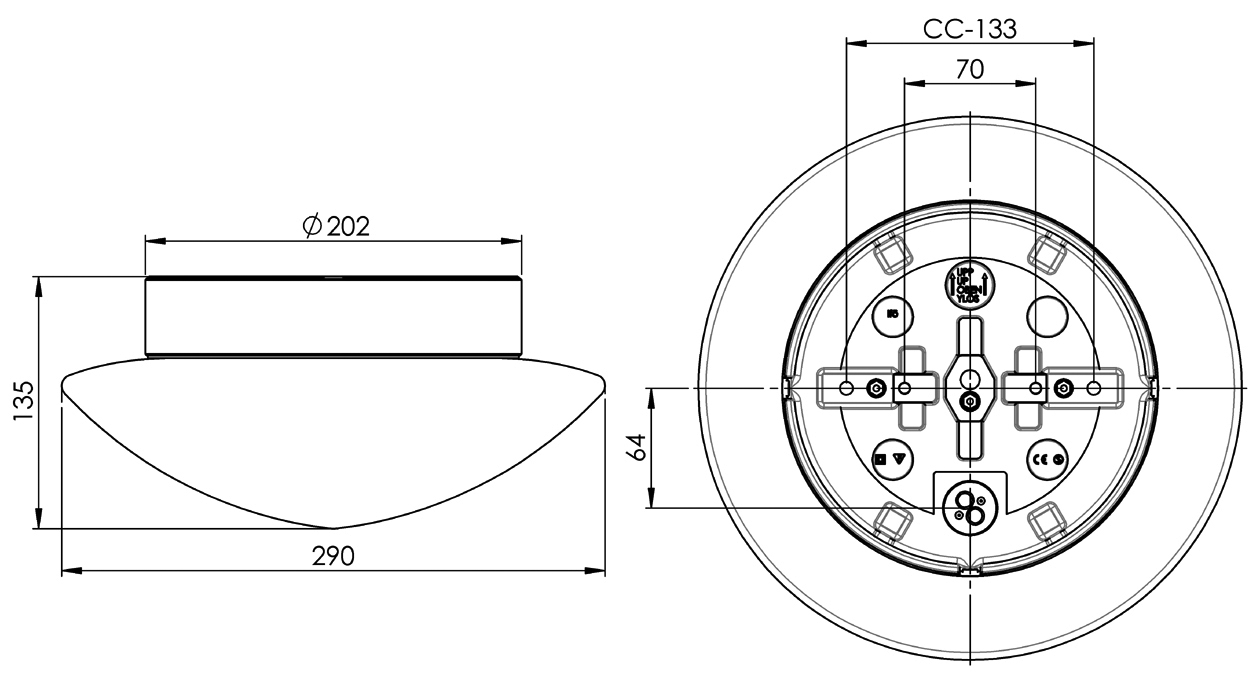

Diameter (mm)290
Height (mm)135
Lamp holderLED
Light sourceLED module, 12W **
Effect12W
Lumen, light source1350lm
Lumen, luminarire1094
Colour temperature3000K
MacAdam3 SDCM
Life spanL80/B10: 50 000 h
RaMin 90
Rated voltage230V
DimmableBack edge only - We recommend dimmers from ION, Schneider, Vadsbo and Niko
IP classIP44
Insulation classII
Energy classE
D classNo
IK classIK02
Ta-30 - +25
InstallationCeiling/wall
CC measurement (mm)133, 70
Knock out opening3
Cable inletBottom inlet
Cable glandsBottom inlet
Cable area, maxMax 3 x 2,5 mm2
BridgingYes
Surface mounted cableYes
ConnectionTerminal block
FamilyContrast
DesignDuoform

Maintenance

Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace LED module if necessary. Check the gasket and replace it if necessary. Screw the shade back on.

** Only use dimmers with manual trailing edge control. Do not use leading edge dimming or automatic setting as this can shorten the lifespan of the module.

If the luminaire is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
