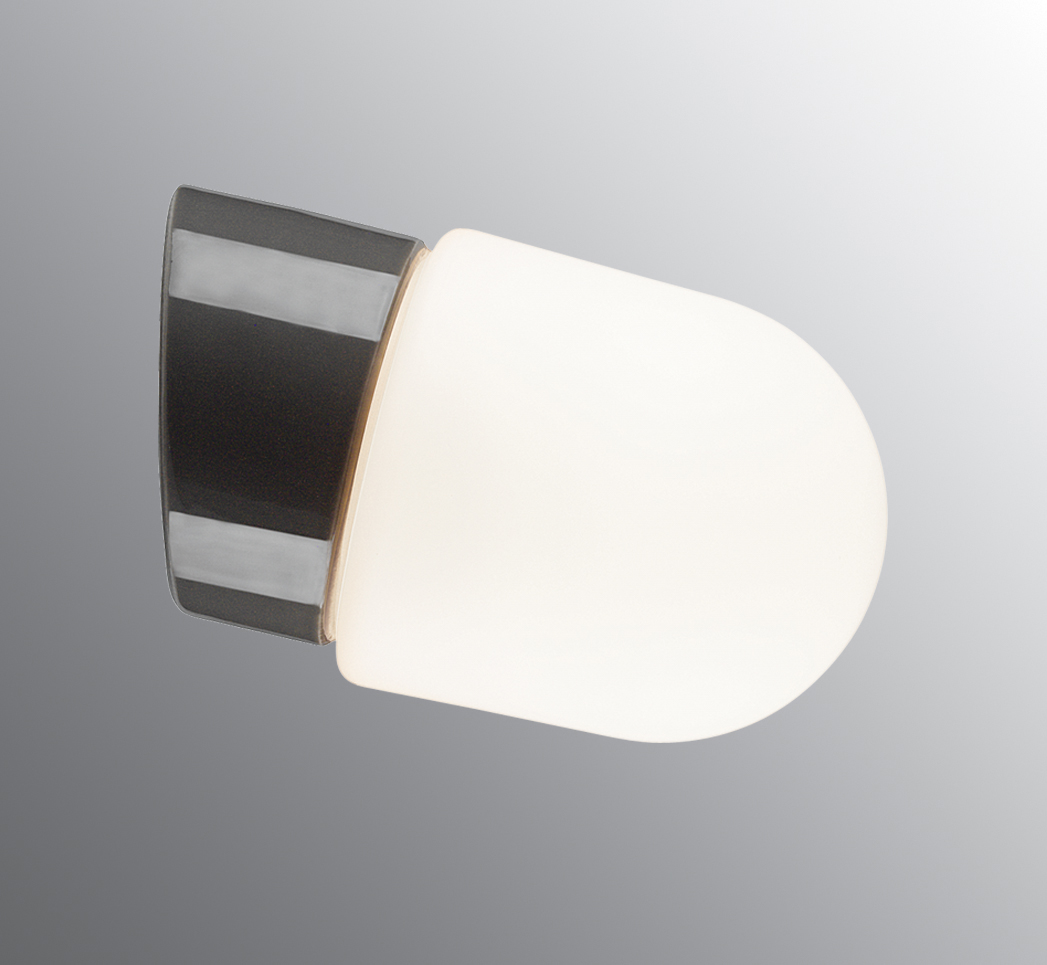

Contrast Fridhem

Contrast is a series with different shades in matt opal glass. Each type of glass has received its own local name to honour the area. Ifö Contrast is suitable for both private and public settings.

Article no. 8018-500-12
E-number 7510209
Norwegian El-number 3055432
Finnish S-number 4211936
EAN / GTIN 7312908018128
Type designation52726

Specification

MaterialPorcelain
Base colourGrey (NCS S 6005-G50Y)
GlassMatt opal glass
Glass thread (mm)84,5 mm
Glass gasketSilicone
Weight0,9 kg
Diameter (mm)115
Length/Depth (mm)178
Height (mm)137
Lamp holderE27
Light sourceE27, max 75W (not included)
EffectMax 75W
Rated voltage230V
IP classIP54
Insulation classII
D classNo
IK classIK02
Ta-30 - +25
InstallationWall
CC measurement (mm)60-66
Knock out opening1 - demands glands
Cable inletBottom inlet
Cable glandsBottom inlet
Cable area, maxMax 2 x 2,5 mm2
BridgingYes
Surface mounted cableYes
ConnectionMantle screw
FamilyContrast
DesignDuoform

Luminaire specific information

Angeled 14 degrees.

Maintenance

Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace light source if necessary. Check the gasket and replace it if necessary. Screw the shade back on.

If the luminaire is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
