Contrast Fridhem Sauna

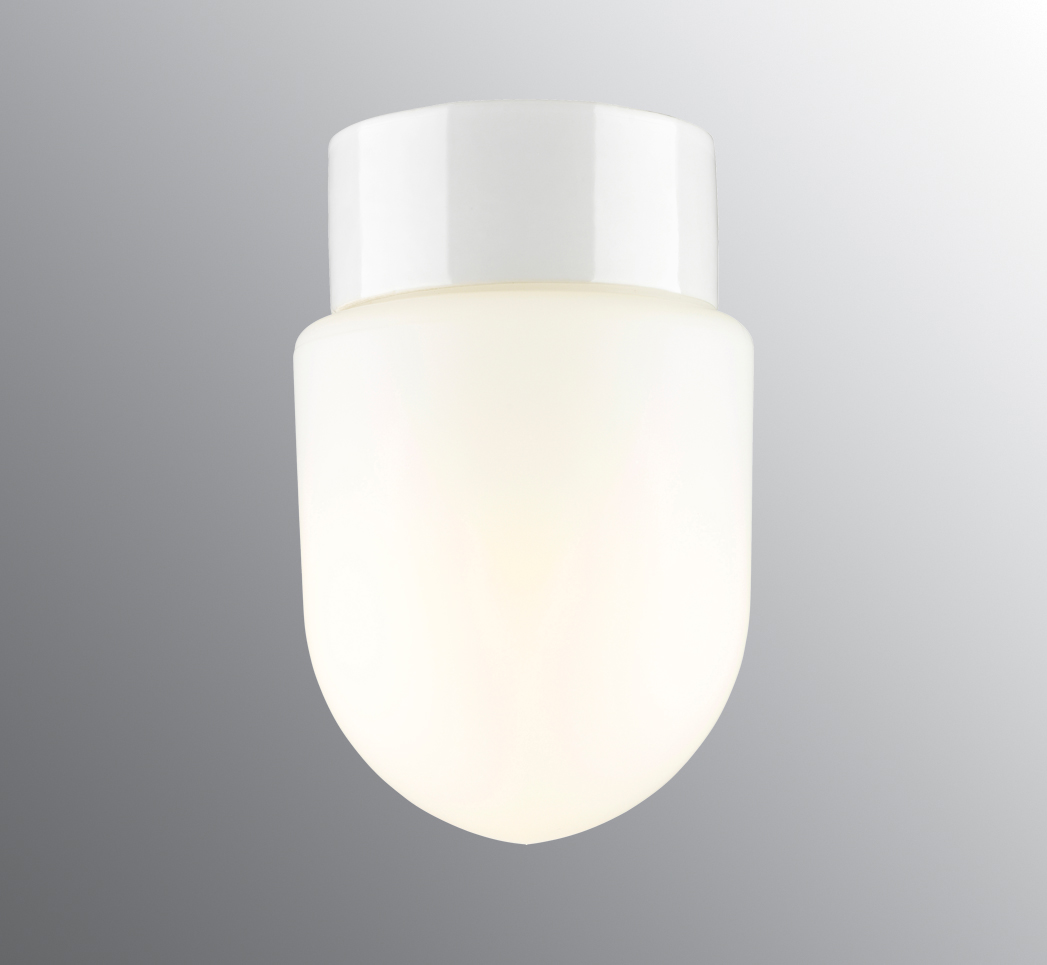

A sauna light fitting from the Contrast series with a ceramic socket and matt opal shade. Available with a straight base for installation in the ceiling or on the wall.

Article no. 8015-509-10
E-number 7530335
Norwegian El-number 3041030
Finnish S-number 4112812
EAN / GTIN 7312908015202
Type designation7240

Specification

MaterialPorcelain
Base colourWhite (NCS S 1000-N)
GlassMatt opal glass
Glass thread (mm)84,5 mm
Glass gasketSilicone
Weight0,85 kg

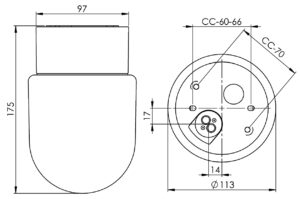

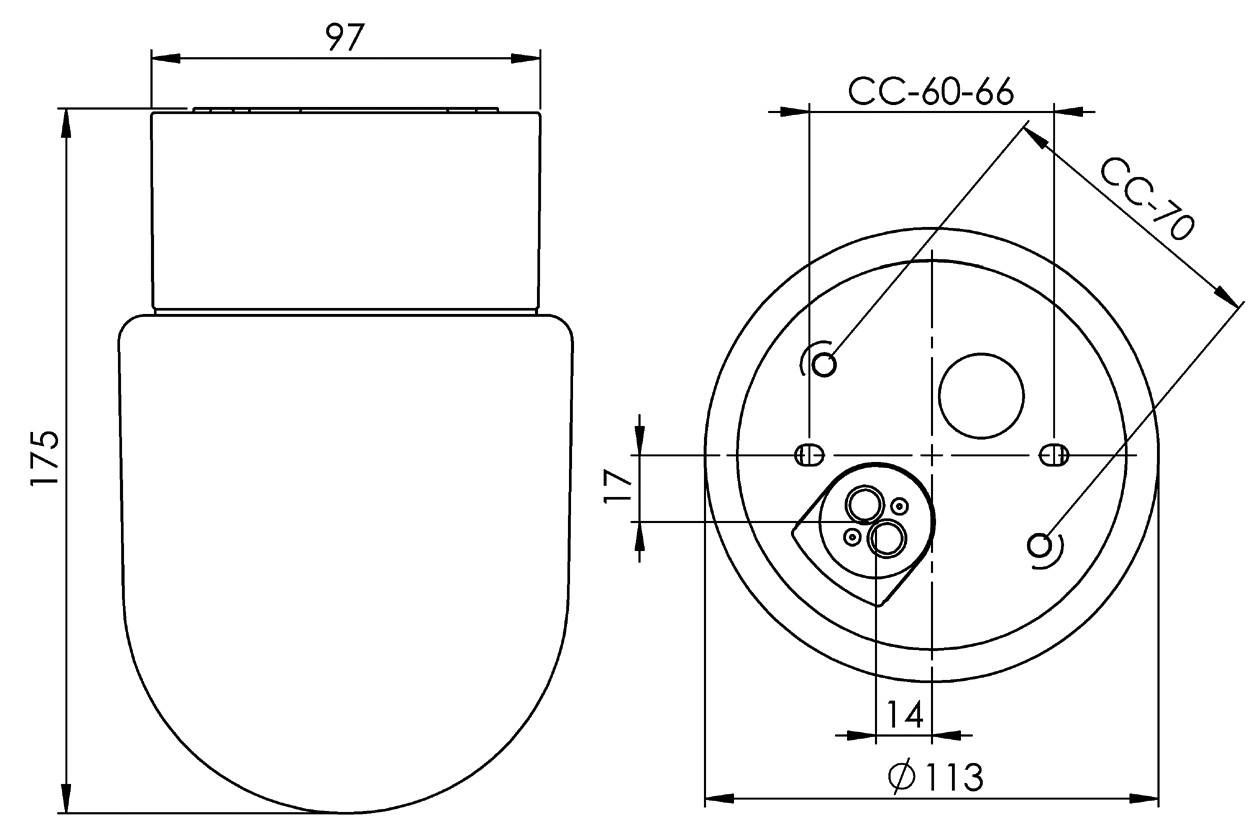

Diameter (mm)113
Height (mm)175
Lamp holderE27
Light sourceMax 40W ceiling/60W wall (included)
EffectMax 40W ceiling/60W wall
Rated voltage230V
IP classIP44
Insulation classII
Energy classG
D classNo
IK classIK02
TaMax +125
InstallationCeiling/wall
CC measurement (mm)60-66
Knock out opening0
Cable inletBottom inlet
Cable glandsBottom inlet
Cable area, maxMax 2 x 2,5 mm2
BridgingYes
Surface mounted cableYes
ConnectionMantle screw
FamilySauna
DesignDuoform

Luminaire specific information

The luminaire is designed to be installed in ambient temperatures of up to 125 °C. Also approved for steam rooms. Sauna light source, E27, 40W included.

Maintenance

Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace light source if necessary. Check the gasket and replace it if necessary. Screw the shade back on.

If the luminaire is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
