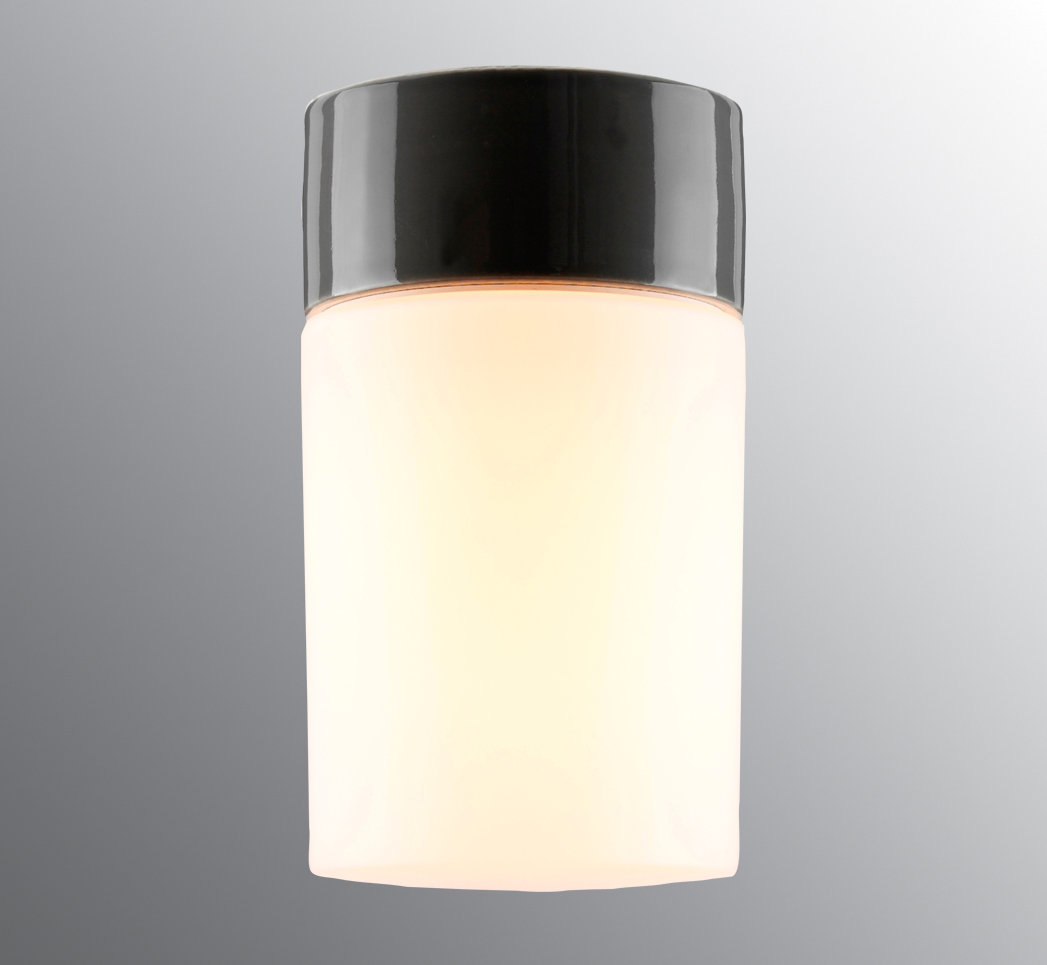

Opus 120/200

Open 120 is an elegant cylindrical shaped light fitting. Its timeless design is suitable for wall or celing installation, both indoors and outdoord. Opus 120 is available with a matt opal or clear glass shade.

Article no. 7244-500-12
E-number 7530833
Norwegian El-number 3032246
Finnish S-number 4112852
EAN / GTIN 7312907244122
Type designation52760

Specification

MaterialPorcelain
Base colourGrey (NCS S 6005-G50Y)
GlassMatt opal glass
Glass thread (mm)99 mm
Glass gasketSilicone
Weight1,4 kg
Diameter (mm)116
Height (mm)204
Lamp holderE27
Light sourceE27, max 60W (not included)
EffectMax 60W
Rated voltage230V
IP classIP54
Insulation classII
D classNo
IK classIK02
Ta-30 - +25
InstallationCeiling/wall
CC measurement (mm)60-66, 70
Knock out opening0
Cable inletBottom inlet
Cable glandsBottom inlet
Cable area, maxMax 2 x 2,5 mm2
BridgingYes
Surface mounted cableNo
ConnectionMantle screw
FamilyOpus
DesignDuoform

Maintenance

Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace light source if necessary. Check the gasket and replace it if necessary. Screw the shade back on.

If the luminaire is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
