Opus 120/200

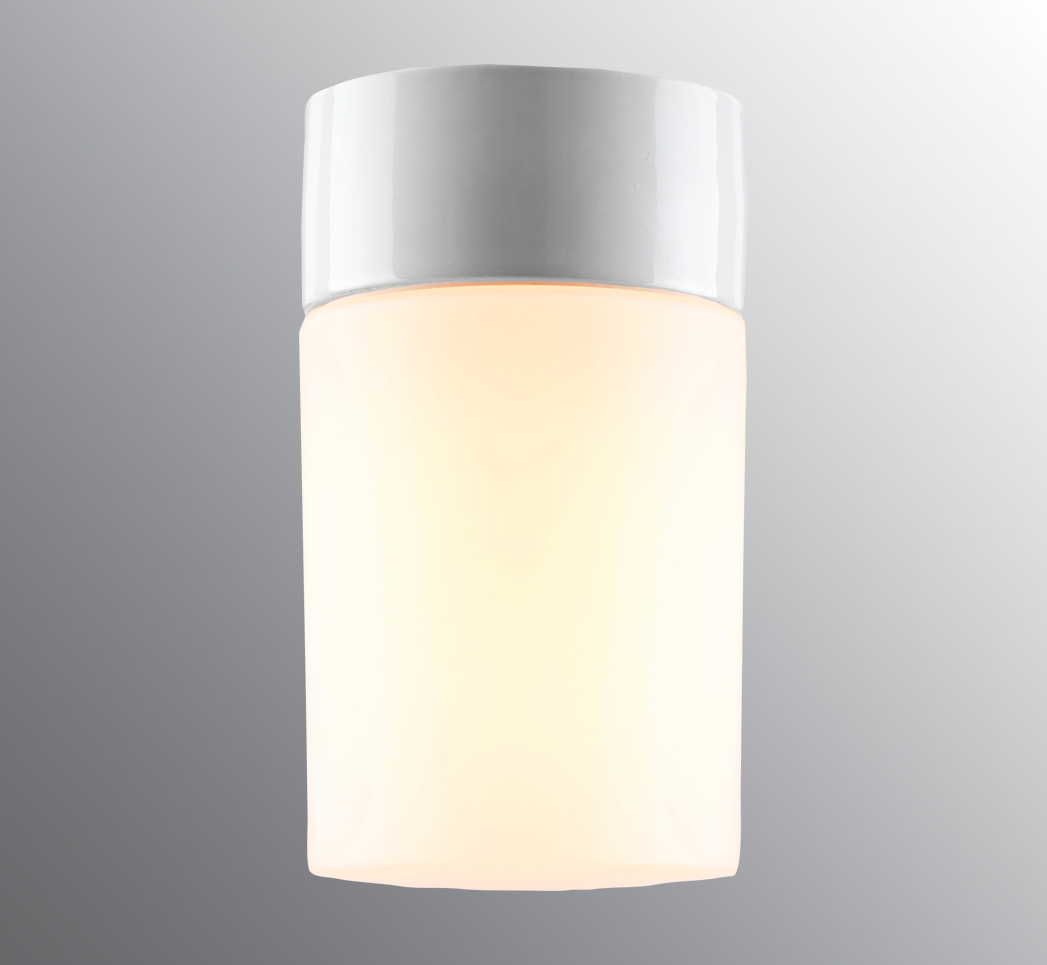

Opus 100/175 is an elegant cylindrical shaped light fitting. Its timeless design is suitable for wall or ceiling installation, both indoors and outdoors. It is available with both matt opal and clear glass shade.

Article no. 7244-500-10
E-number 7530832
Norwegian El-number 3032245
Finnish S-number 4112850
EAN / GTIN 7312907244108
Type designation52760

Specification

MaterialPorcelain
Base colourWhite (NCS S 1000-N)
GlassMatt opal glass
Glass thread (mm)99 mm
Glass gasketSilicone
Weight1,4 kg
Diameter (mm)116
Height (mm)204
Lamp holderE27
Light sourceE27, max 60W (not included)
EffectMax 60W
Rated voltage230V
IP classIP54
Insulation classII
D classNo
IK classIK02
Ta-30 - +25
InstallationCeiling/wall
CC measurement (mm)60-66, 70
Knock out opening0
Cable inletBottom inlet
Cable glandsBottom inlet
Cable area, maxMax 2 x 2,5 mm2
BridgingYes
Surface mounted cableNo
ConnectionMantle screw
FamilyOpus
DesignDuoform

Maintenance

Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace light source if necessary. Check the gasket and replace it if necessary. Screw the shade back on.

If the luminaire is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
