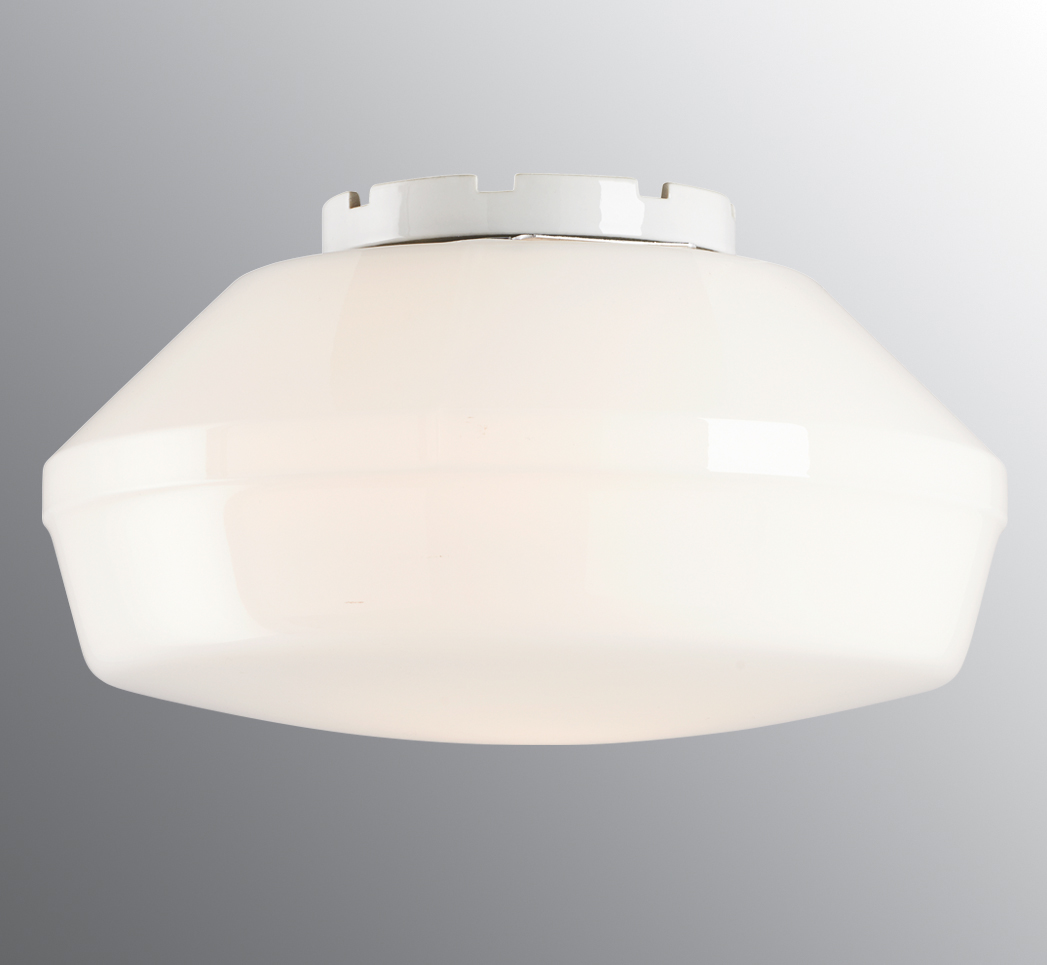

Classic

A old favourite in our assortment. Classic has a ceramic base and a shiny opal shade. It can be placed in the ceiling or on the wall, both indoors and outdoors.

Article no. 6085-500-10
E-number 7510315
Norwegian El-number 3032145
Finnish S-number 4211991
EAN / GTIN 7312906085108
Type designation6085

Specification

MaterialPorcelain
Base colourWhite (NCS S 1000-N)
GlassShiny opal glass
Glass thread (mm)99 mm
Weight1,48 kg
Diameter (mm)265
Height (mm)147
Lamp holderE27
Light sourceE27, max 75W (not included)
EffectMax 75W
Rated voltage230V
IP classIP20
Insulation classII
D classNo
IK classIK02
Ta-30 - +25
InstallationCeiling
CC measurement (mm)42-78
Knock out opening6
Cable inletBottom inlet
Cable glandsBottom inlet
Cable area, maxMax 2 x 2,5 mm2
BridgingYes
Surface mounted cableYes
ConnectionScrew connector
FamilyClassic
DesignIfö Electric

Maintenance

Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace light source if necessary. Screw the shade back on.

If the luminaire is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
