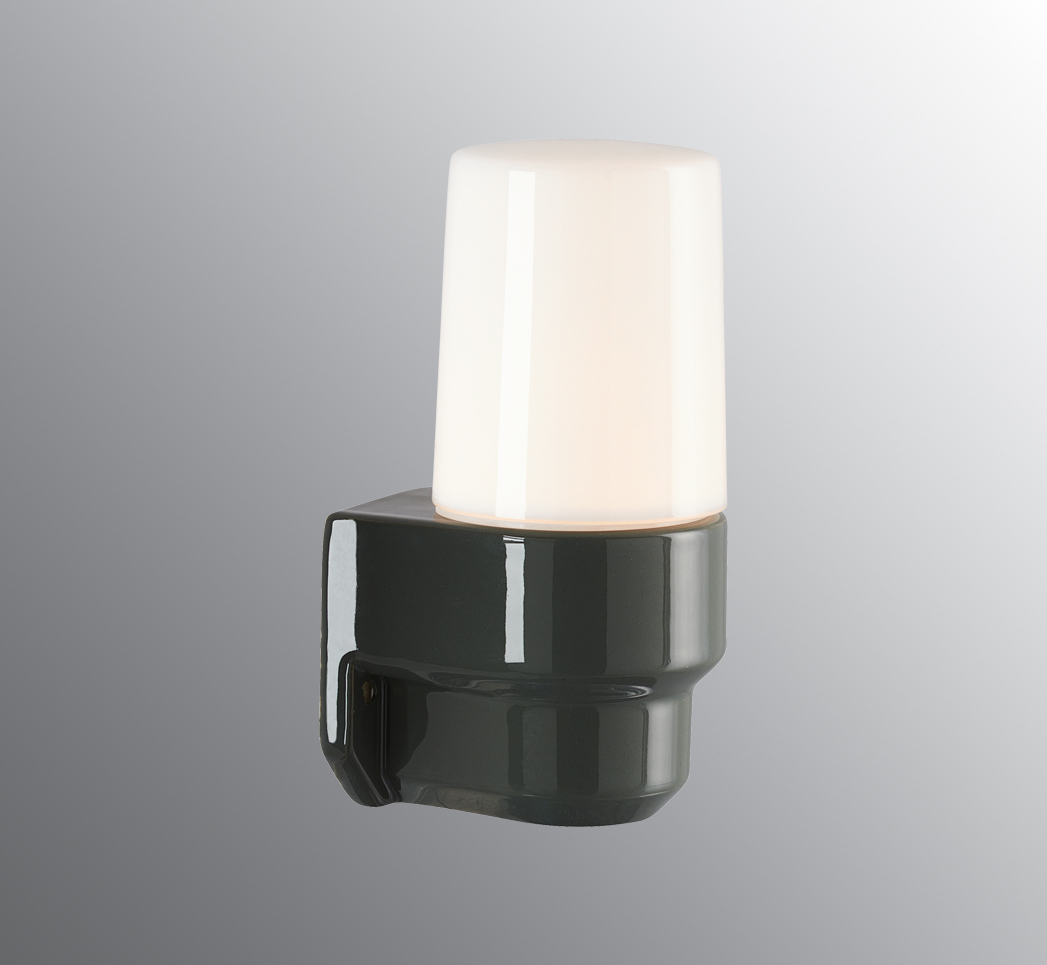

Shade Lampett shiny opal
Gasket silicone for thread 57 mm for BernadotteClassic Sauna
An old favourite in our assortment. Place it on the wall in the sauna.
- Article no. 6081-700-12
- E-number 7530751
- Norwegian El-number 3041028
- Finnish S-number 4212233
- EAN / GTIN 7312906081124
- Type designation6081
Specification
- MaterialPorcelain
- Base colourGrey (NCS S 6005-G50Y)
- GlassShiny opal glass
- Glass thread (mm)57 mm
- Glass gasketSilicone
- Weight0,75 kg

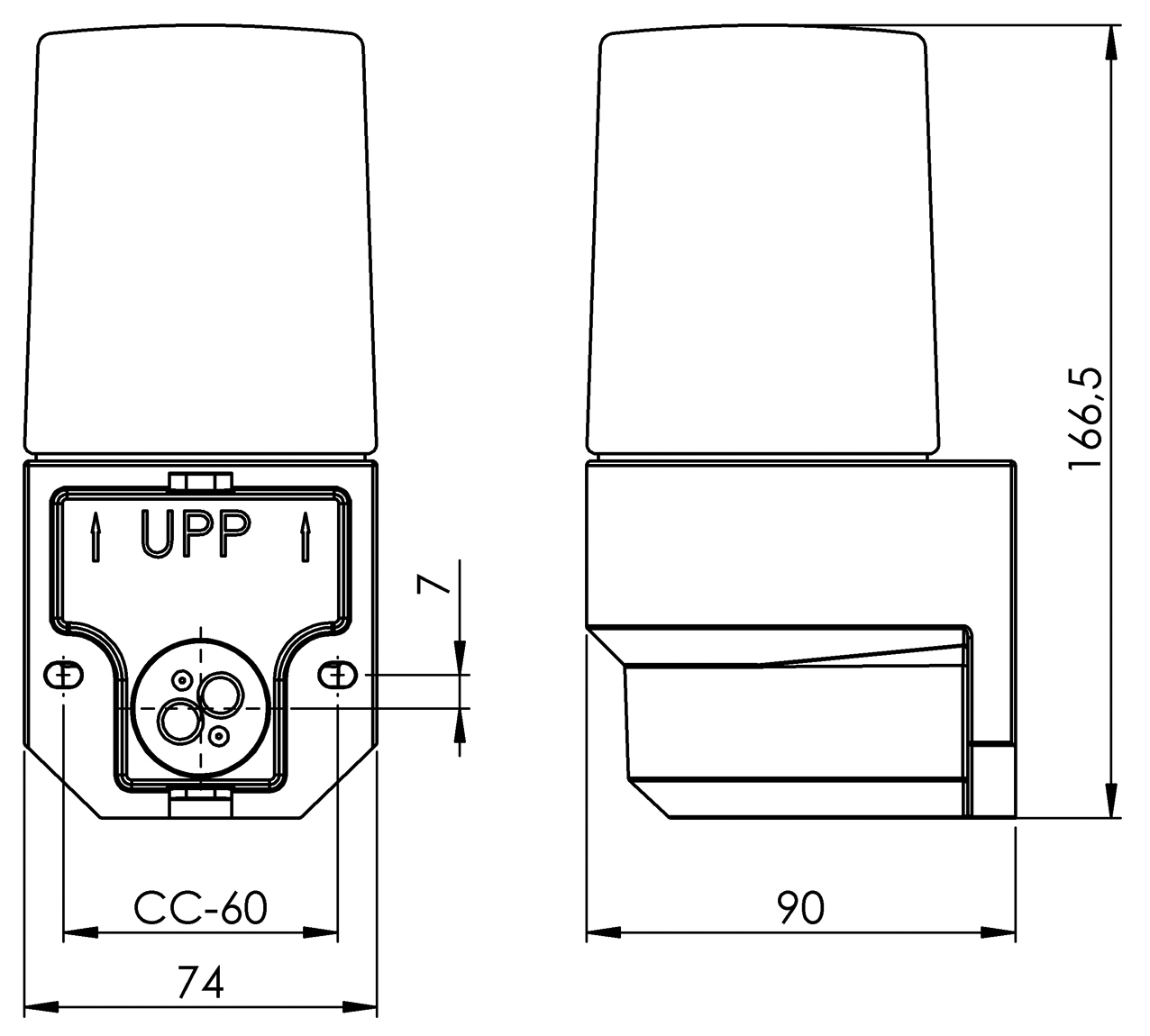

- Diameter (mm)74
- Length/Depth (mm)90
- Width (mm)74
- Height (mm)167
- Lamp holderE14
- Light sourceMax 40W (included)
- EffectMax 40W
- Rated voltage230V
- IP classIP55
- Insulation classII
- Energy classG
- D classNo
- IK classIK02
- TaMax +125
- InstallationWall
- CC measurement (mm)60
- Knock out opening2
- Cable inletBottom inlet
- Cable glandsBottom inlet
- Cable area, maxMax 2 x 2,5 mm2
- BridgingYes
- Surface mounted cableYes
- ConnectionScrew connector
- FamilySauna
- DesignIfö Electric
Luminaire specific information
The luminaire is designed to be installed in ambient temperatures of up to 125 °C. Also approved for steam rooms. Sauna light source, E14, 25W included.
Maintenance
Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace light source if necessary. Check the gasket and replace it if necessary. Screw the shade back on.
If the luminaire is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
