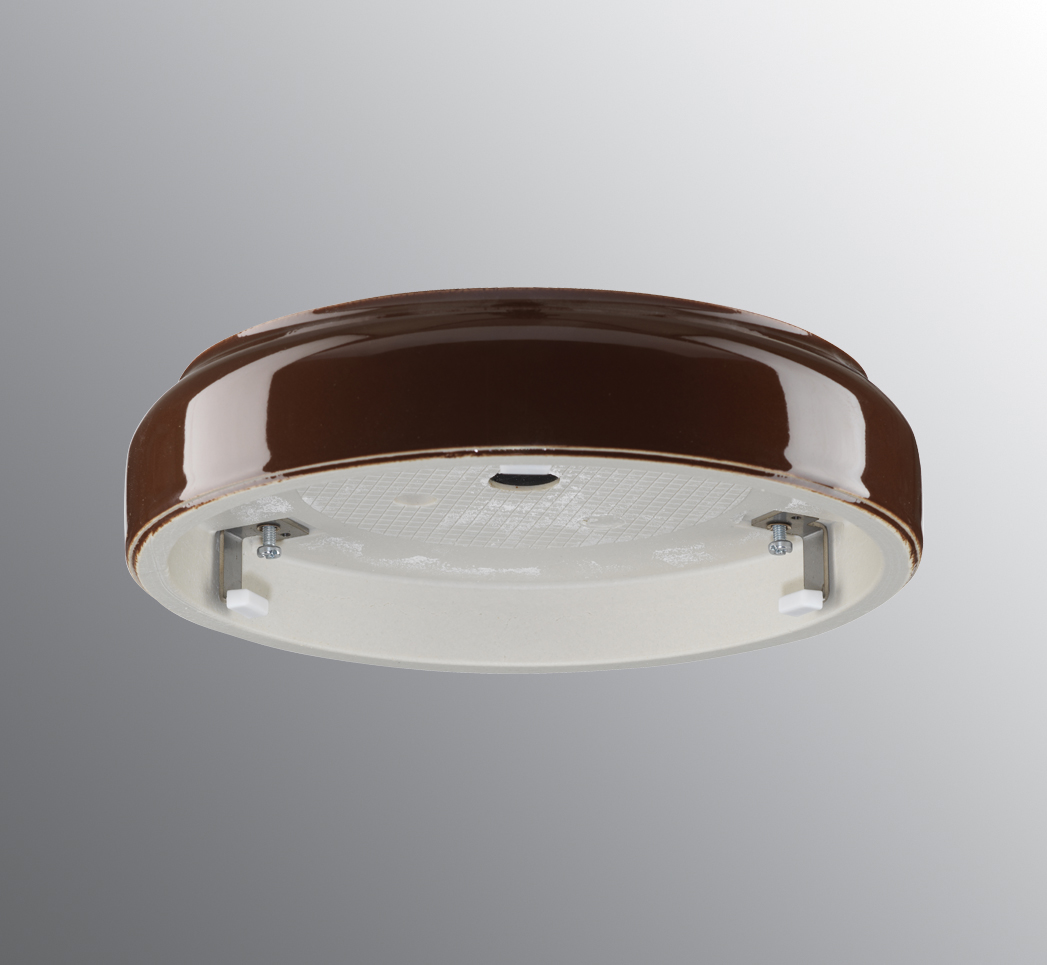

Base Ohm 220 bayonet 184 mm brown IP44. Unequipped.
Base Ohm 220. Bayonet 184 mm. Brown porcelain base. IP44. Unequipped.
- Article no. 55833-800-14
- E-number 7512305
- EAN / GTIN 7312905583353
- Type designation51833/LED
Specification
- Base colourBrown (NCS 7810-Y66R)
- Glass thread (mm)184 mm
- Glass gasketSilicone
- Weight1,81
- Diameter (mm)220
- Height (mm)58
- Lamp holderUnequipped
- Light sourceLED module, max 17W (not incl.)
- Lighting controlLED module, max 17W (not incl.)
- Rated voltage230V
- IP classIP44
- Insulation classI
- IK classIK02
- Ta-30 - +25
- InstallationCeiling/wall
- CC measurement (mm)70, 101
- Knock out opening2
- Cable inletBottom inlet
- Cable glandsBottom inlet
- BridgingYes
- Surface mounted cableYes
- FamilyBases
- DesignKauppi & Kauppi
Maintenance
Disconnect the luminiarie. Remove the shade and clean it. Do not use cleaning agents containing solvents. Change the light source if necessary. Check the gasket and change it if necessary. Replace the shade.
If the base is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
