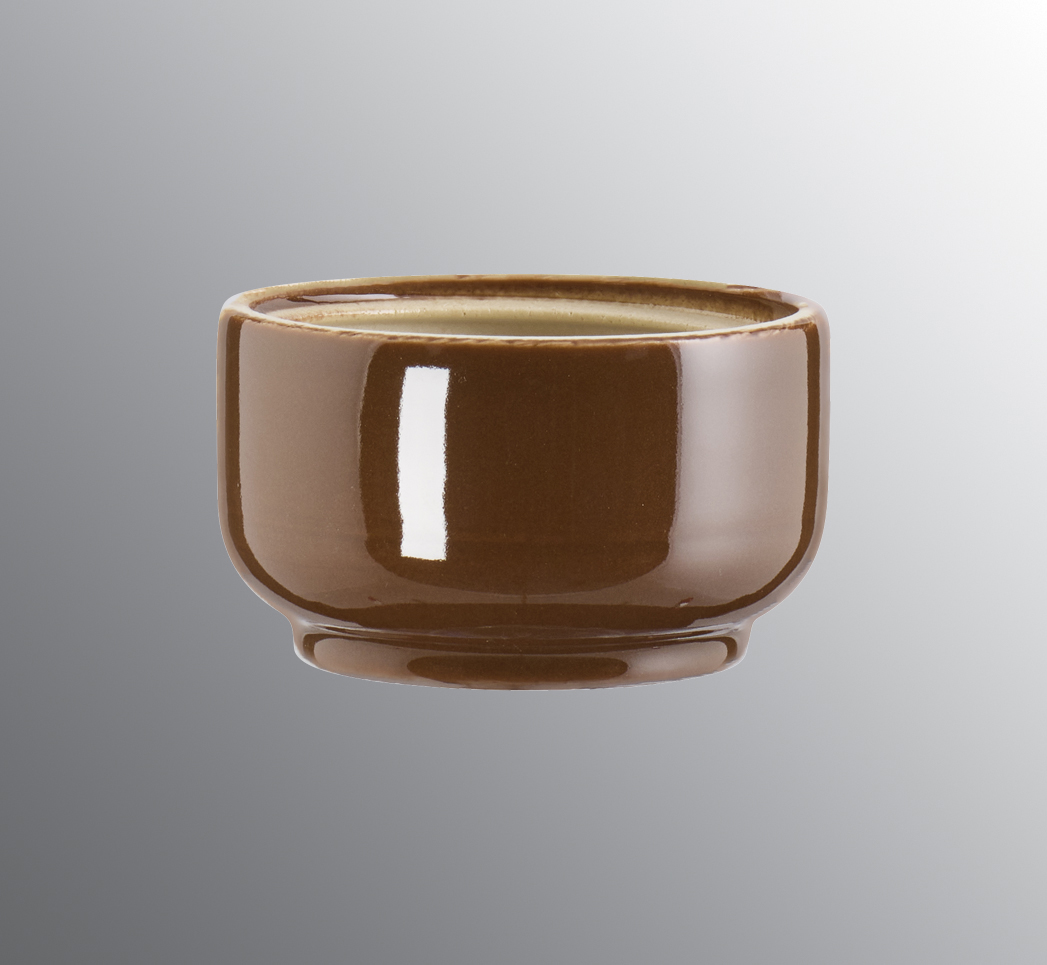

Base Ohm thread 84,5 mm LED

Base Ohm with thread 84,5 mm, brown, IP44. To be completed with a LED module, max 8W

  • Article no. 55821-800-14
  • E-number 7505316
  • EAN / GTIN 7312905782145
  • Type designation51821A/LED
Intertek SCE - Conformité-Européenne


  • MaterialPorcelain
  • Base colourBrown (NCS S 8010-Y50R)
  • Glass thread (mm)84,5 mm
  • Glass gasketSilicone
  • Weight0,44 kg
  • Diameter (mm)97
  • Height (mm)56
  • Lamp holderWithout lamp holder
  • Light sourceLED module, max 8W (not included)
  • EffectMax 8W
  • Rated voltage230V
  • IP classIP44
  • Insulation classI
  • IK classIK02
  • InstallationCeiling/wall
  • CC measurement (mm)61, 45
  • Knock out opening0
  • Cable inletBottom inlet
  • Cable glandsBottom inlet
  • BridgingYes
  • Surface mounted cableNo
  • FamilyBases
  • DesignKauppi & Kauppi

Luminaire specific information

Complete with a LED module, max 8W.


Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace light source if necessary. Check the gasket and replace it if necessary. Screw the shade back on.

If the base is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
