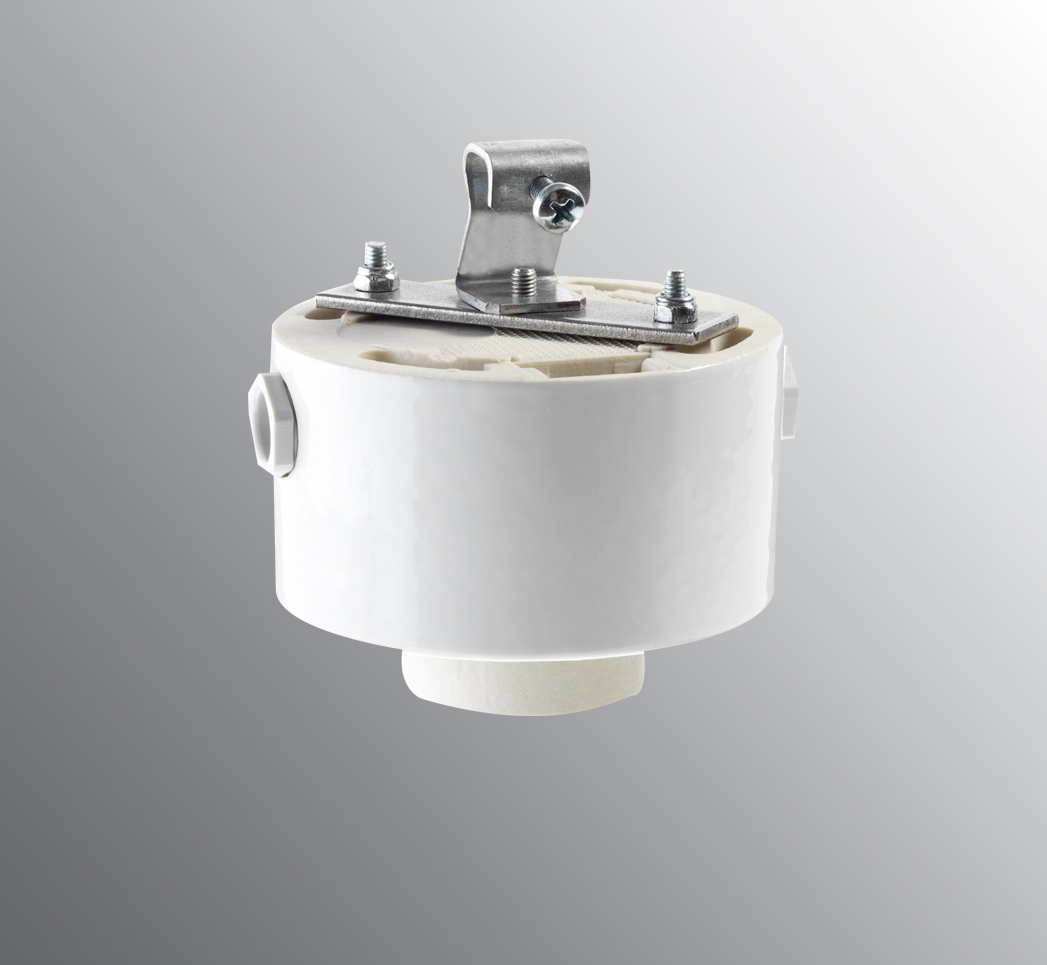

Base thread 84,5 mm

  • Article no. 55010-000-10
  • E-number 7510021
  • Norwegian El-number 3056124
  • Finnish S-number 4211980
  • EAN / GTIN 7312905501005
  • Type designation52721-2
Intertek SCE - Conformité-Européenne

Specification

  • MaterialPorcelain
  • Base colourWhite (NCS S 1000-N)
  • Glass thread (mm)84,5 mm
  • Glass gasketSilicone
  • Weight0,7 kg
  • Diameter (mm)97
  • Height (mm)54
  • Lamp holderE27
  • Light sourceE27, max 75W (not included)
  • EffectMax 75W
  • Rated voltage230V
  • IP classIP54
  • Insulation classII
  • D classYes
  • IK classIK02
  • Ta-30 - +25
  • InstallationLine mount
  • CC measurement (mm)60-66
  • Knock out opening0
  • Cable inletSide inlet
  • Cable glandsSide inlet
  • Cable area, maxMax 2 x 2,5 mm2
  • BridgingYes
  • Surface mounted cableYes
  • ConnectionMantle screw
  • FamilyBases

Luminaire specific information

Approved for use in environments where an accumulation of non-conductive dust on the luminaire can be expected.

Maintenance

Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace light source if necessary. Check the gasket and replace it if necessary. Screw the shade back on.

If the base is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
