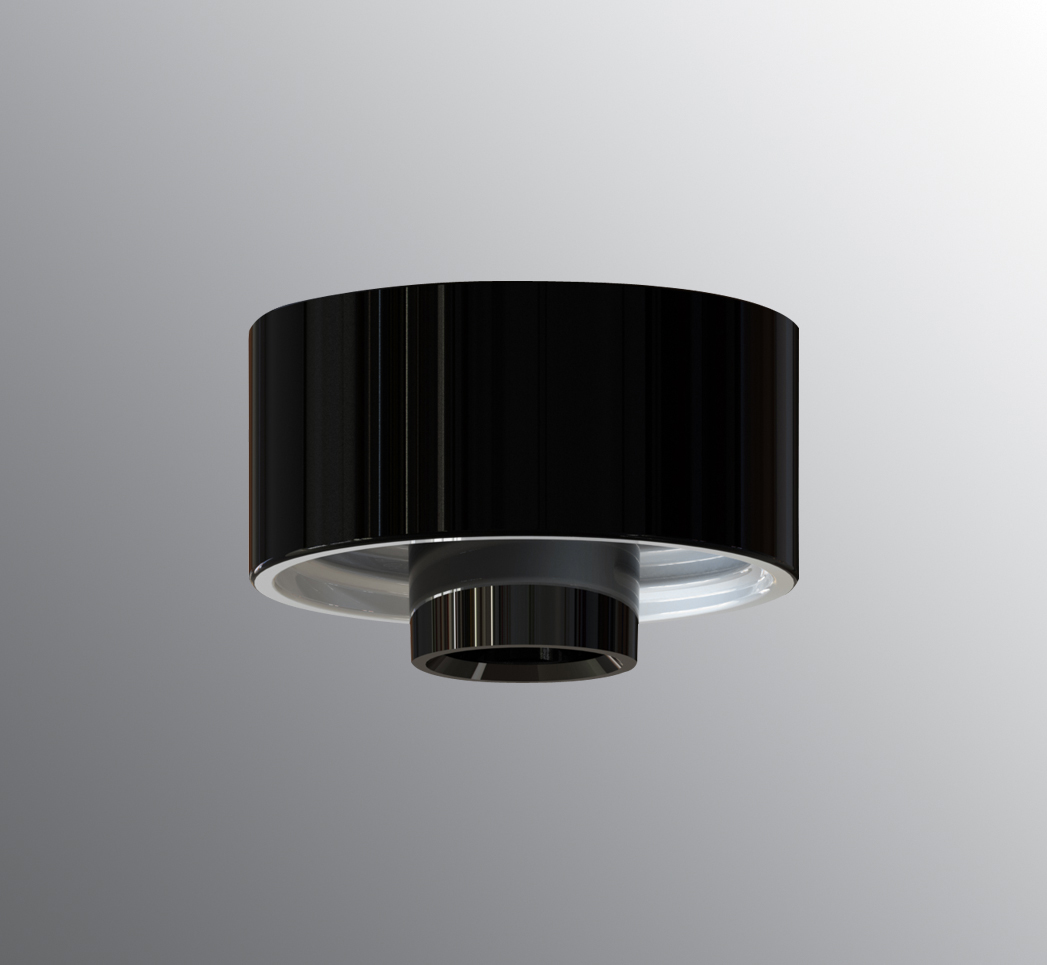

Base thread 99 mm

Black IP54 straight E27 60W with bottom inlet

  • Article no. 52760-000-16
  • E-number 7500082
  • Norwegian El-number 3232267
  • Finnish S-number 4112867
  • EAN / GTIN 7312905276064
  • Type designation52760
Intertek SCE - Conformité-Européenne

Specification

  • MaterialPorcelain
  • Base colourBlack (NCS S 9000-N)
  • Glass thread (mm)99 mm
  • Glass gasketSilicone
  • Weight0,64 kg
  • Diameter (mm)115
  • Height (mm)55
  • Lamp holderE27
  • Light sourceE27, max 60W (not included)
  • EffectMax 60W
  • Rated voltage230V
  • IP classIP54
  • Insulation classII
  • D classNo
  • IK classIK02
  • Ta-30 - +25
  • InstallationCeiling/wall
  • CC measurement (mm)60-66, 70
  • Knock out opening0
  • Cable inletBottom inlet
  • Cable glandsBottom inlet
  • Cable area, maxMax 2 x 2,5 mm2
  • BridgingYes
  • Surface mounted cableNo
  • ConnectionMantle screw
  • FamilyBases

Maintenance

Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace light source if necessary. Check the gasket and replace it if necessary. Screw the shade back on.

If the base is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
