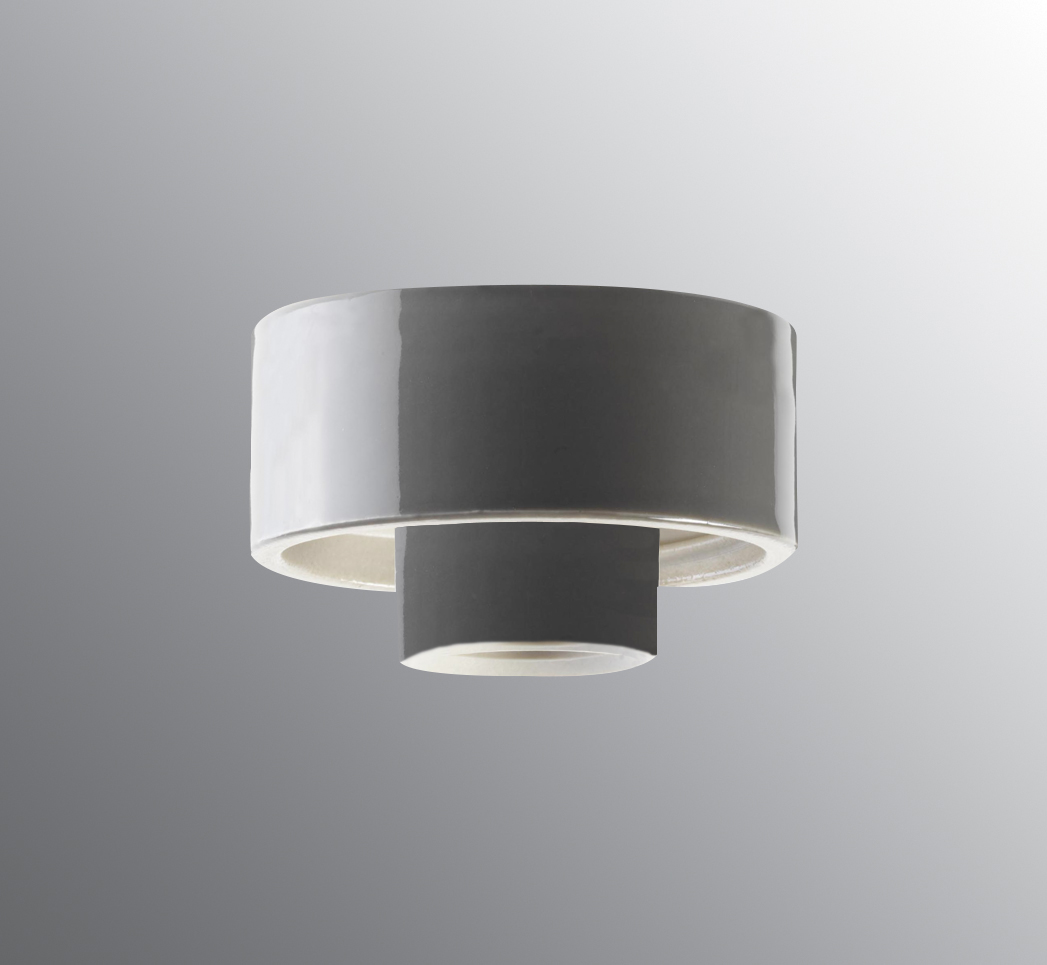

Base thread 84,5 mm

  • Article no. 52740-000-12
  • E-number 7500020
  • Norwegian El-number 3031901
  • Finnish S-number 4211974
  • EAN / GTIN 7312905274022
  • Type designation52740
Intertek SCE - Conformité-Européenne

Specification

  • MaterialPorcelain
  • Base colourGrey (NCS S 6005-G50Y)
  • Glass thread (mm)84,5 mm
  • Glass gasketSilicone
  • Weight0,47 kg
  • Diameter (mm)100
  • Height (mm)44
  • Lamp holderE27
  • Light sourceE27, max 75W (not included)
  • EffectMax 75W
  • Rated voltage230V
  • IP classIP20
  • Insulation classII
  • D classNo
  • IK classIK02
  • Ta-30 - +25
  • InstallationCeiling/wall
  • CC measurement (mm)60-66, 70
  • Knock out opening2
  • Cable inletBottom inlet
  • Cable glandsBottom inlet
  • Cable area, maxMax 2 x 2,5 mm2
  • BridgingYes
  • Surface mounted cableYes
  • ConnectionScrew connector
  • FamilyBases

Maintenance

Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace light source if necessary. Check the gasket and replace it if necessary. Screw the shade back on.

If the base is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
