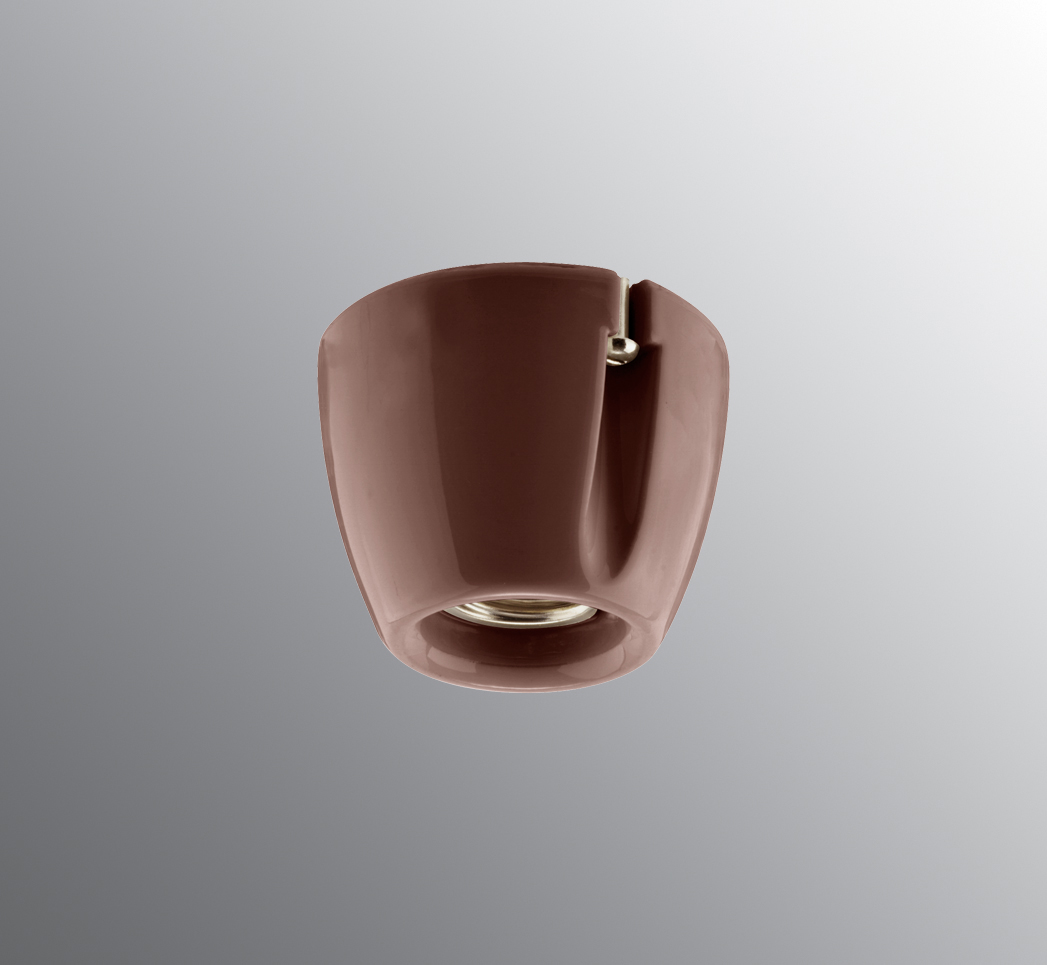

Basic

Simple is often difficult, but it is often the simple that gives the best effect and that wins the heart. Despite its simplicity Ifö Basic is used in most the exclusive environments.

  • Article no. 52702-000-14
  • E-number 7500007
  • Norwegian El-number 3032202
  • Finnish S-number 4212320
  • EAN / GTIN 7312905270246
  • Type designation52702
Intertek SCE - Conformité-Européenne

Specification

  • MaterialPorcelain
  • Base colourBrown (NCS S 8010-Y50R)
  • Weight0,25 kg
  • Diameter (mm)70
  • Height (mm)56
  • Lamp holderE27
  • Light sourceE27, max 100W (not included)
  • EffectMax 100W
  • Rated voltage230V
  • IP classIP20
  • Insulation classII
  • D classNo
  • IK classIK03
  • Ta-30 - +25
  • InstallationCeiling/wall
  • CC measurement (mm)58
  • Knock out opening2
  • Cable inletBottom inlet
  • Cable glandsBottom inlet
  • Cable area, maxMax 2 x 2,5 mm2
  • BridgingYes
  • Surface mounted cableYes
  • ConnectionScrew connector
  • FamilyBasic
  • DesignDuoform

Maintenance

Switch off the power to the light fitting. Dust or dry with a slightly damp cloth. Change the light source if necessary.

If the luminaire is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
