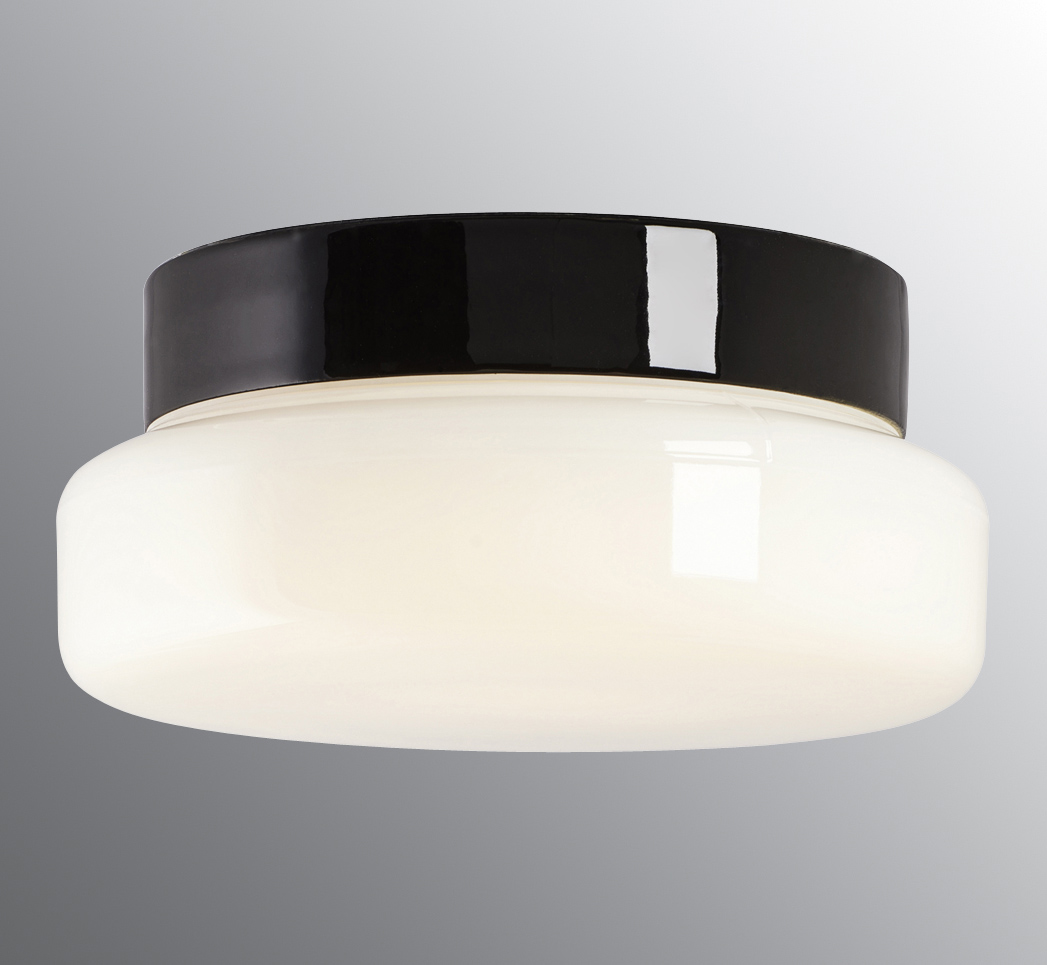

Classic LED 3000K

An old favourite in our assortment. Classic has a ceramic base and a shiny opal shade. It can be placed in the ceiling or on the wall, both indoors and outdoors. Equipped with a LED module, 13W.

Article no. 4091-800-16
E-number 7501372
EAN / GTIN 7312904091866
Type designation8262/LED

Specification

MaterialPorcelain
Base colourBlack (NCS S 9000-N)
GlassShiny opal glass
Glass thread (mm)185,5 mm
Glass gasketSilicone
Weight2,42 kg
Diameter (mm)240
Height (mm)117
Lamp holderLED
Light sourceLED module, 12W **
Effect12W
Lumen, light source1350lm
Lumen, luminarire1033
Colour temperature3000K
MacAdam3 SDCM
Life spanL80/B10: 50 000 h
RaMin 90
Rated voltage230V
DimmableBack edge only - We recommend dimmers from ION, Schneider, Vadsbo and Niko
IP classIP44
Insulation classII
Energy classE
D classNo
IK classIK02
Ta-30 - +25
InstallationCeiling/wall
CC measurement (mm)133, 70
Knock out opening3
Cable inletBottom inlet
Cable glandsBottom inlet
Cable area, maxMax 3 x 2,5 mm2
BridgingYes
Surface mounted cableYes
ConnectionTerminal block
FamilyClassic
DesignIfö Electric

Maintenance

Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace LED module if necessary. Check the gasket and replace it if necessary. Screw the shade back on.

** Only use dimmers with manual trailing edge control. Do not use leading edge dimming or automatic setting as this can shorten the lifespan of the module.

If the luminaire is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
