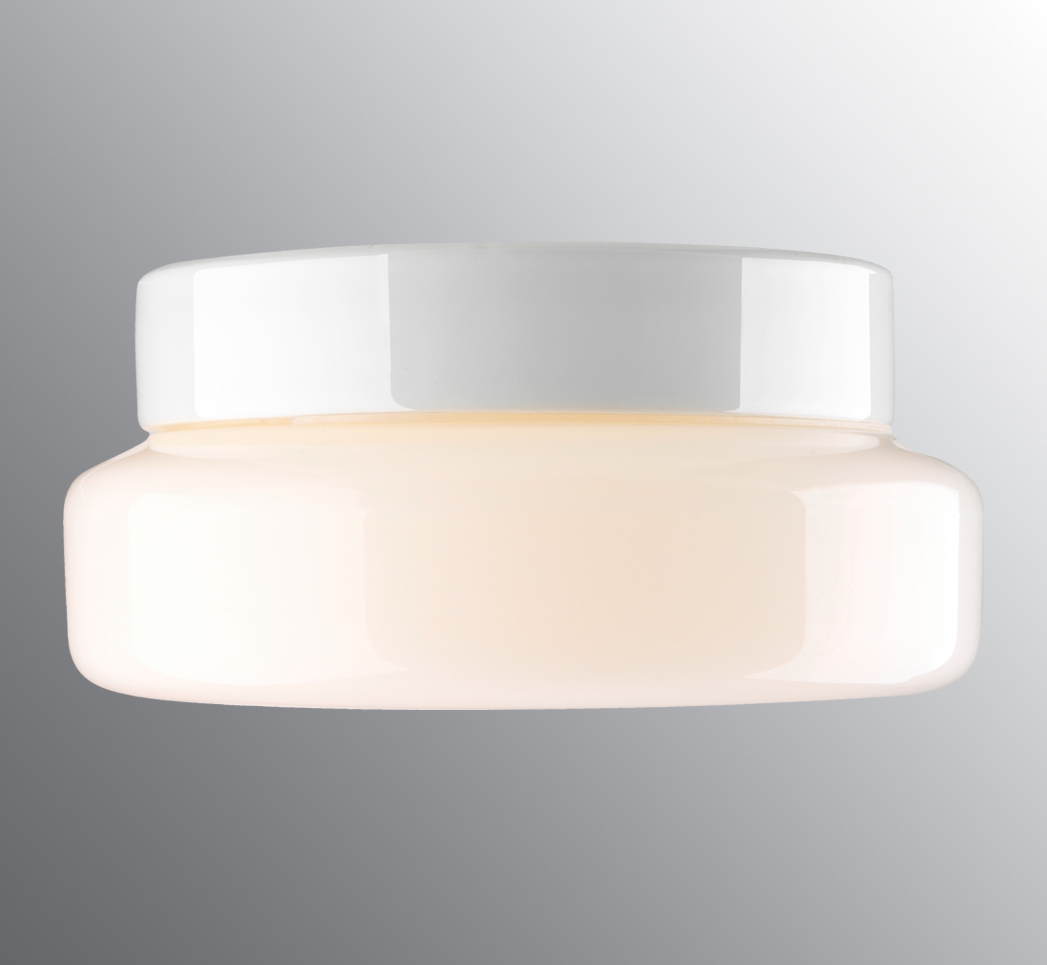

Classic

A old favourite in our assortment. Classic has a ceramic base and a shiny opal shade. It can be placed in the ceiling or on the wall, both indoors and outdoors.

Article no. 4091-500-10
E-number 7530333
Norwegian El-number 3032146
Finnish S-number 4211995
EAN / GTIN 7312904091101
Type designation7038A

Specification

MaterialPorcelain
Base colourWhite (NCS S 1000-N)
GlassShiny opal glass
Glass thread (mm)185,5 mm
Glass gasketSilicone
Weight2,2 kg
Diameter (mm)240
Height (mm)117
Lamp holderE27
Light sourceE27, max 75W (not included)
EffectMax 75W
Rated voltage230V
IP classIP44
Insulation classII
D classNo
IK classIK02
Ta-30 - +25
InstallationCeiling/wall

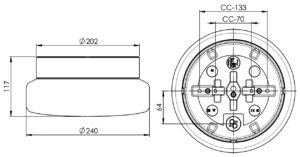

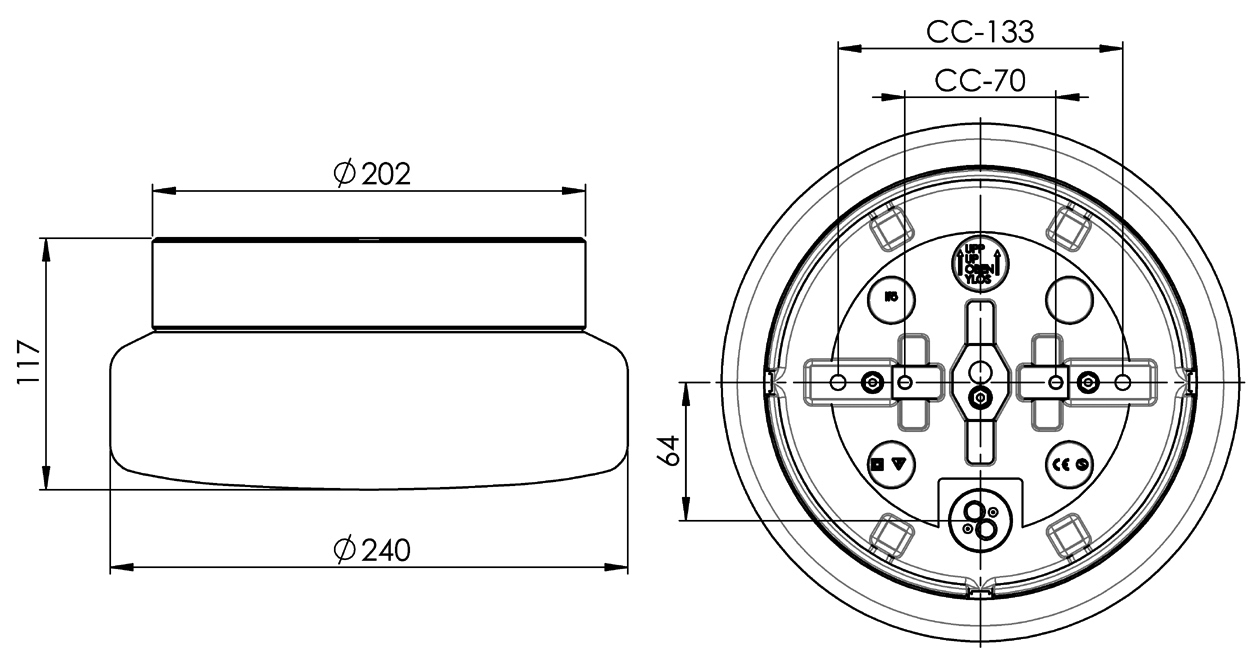

CC measurement (mm)133, 70
Knock out opening3
Cable inletBottom inlet
Cable glandsBottom inlet
Cable area, maxMax 2 x 2,5 mm2
BridgingYes
Surface mounted cableYes
ConnectionScrew connector
FamilyClassic
DesignIfö Electric

Maintenance

Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace light source if necessary. Check the gasket and replace it if necessary. Screw the shade back on.

If the luminaire is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
