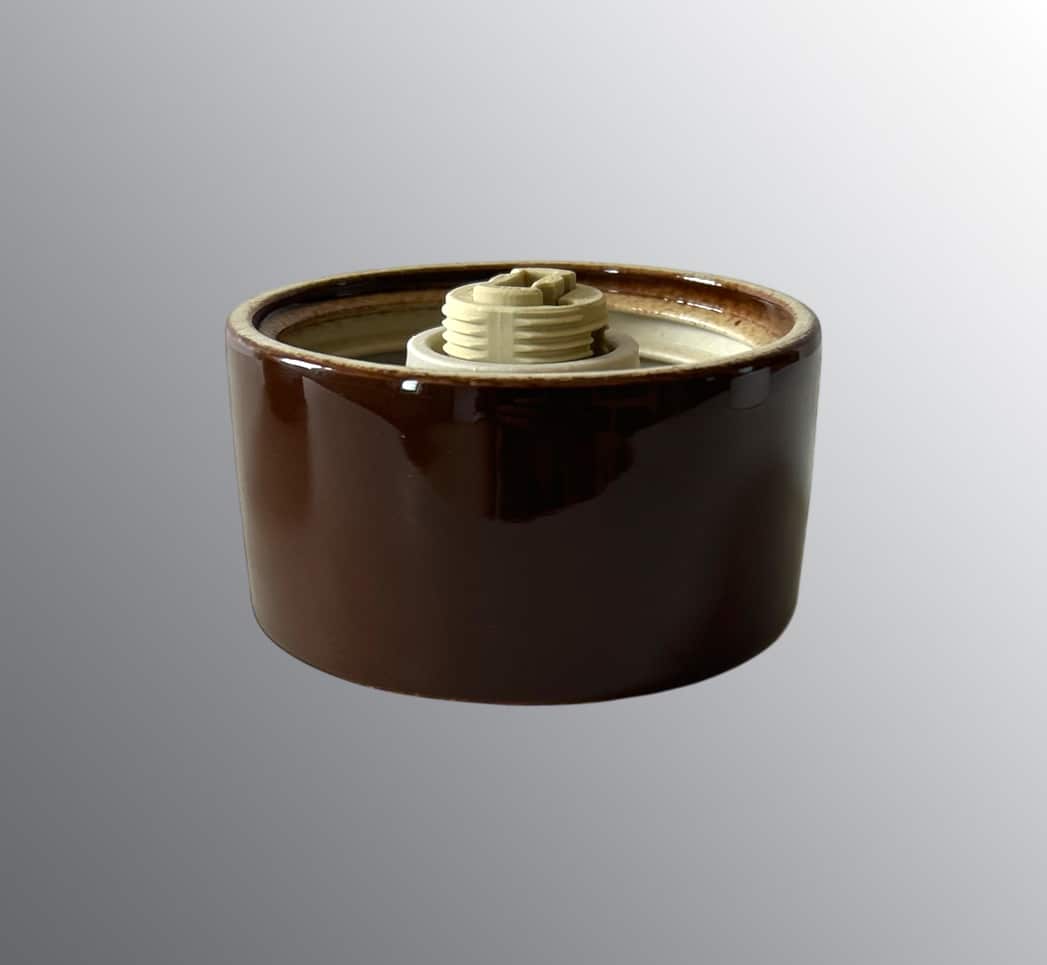

Base thread 84,5 mm brown IP44 straight G9 25W

Base thread 84,5 mm. Grey. IP44. Straight. G9. 25W. With bottom lead-in.

Article no. 55717-200-14
E-number 7511732
EAN / GTIN 7312901571743
Type designation7201

Specification

MaterialPorcelain
Base colourBrown (NCS 7810-Y66R)
Glass thread (mm)84,5 mm
Glass gasketSilicone
Weight0,41 kg
Diameter (mm)100
Height (mm)50
Lamp holderG9
Light sourceG9, max 25W (ej inkl.)
EffectMax 25W
Rated voltage230V
IP classIP44
Insulation classII
D classNo
IK classIK02
Ta-30 - +25
InstallationCeiling/wall
CC measurement (mm)60-66, 70
Knock out opening0
Cable inletBottom inlet
Cable area, maxMax 2 x 2,5 mm2
BridgingYes
Surface mounted cableNo
ConnectionMantle screw
FamilyBases

Maintenance

Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace light source if necessary. Check the gasket and replace it if necessary. Screw the shade back on.

If the base is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
